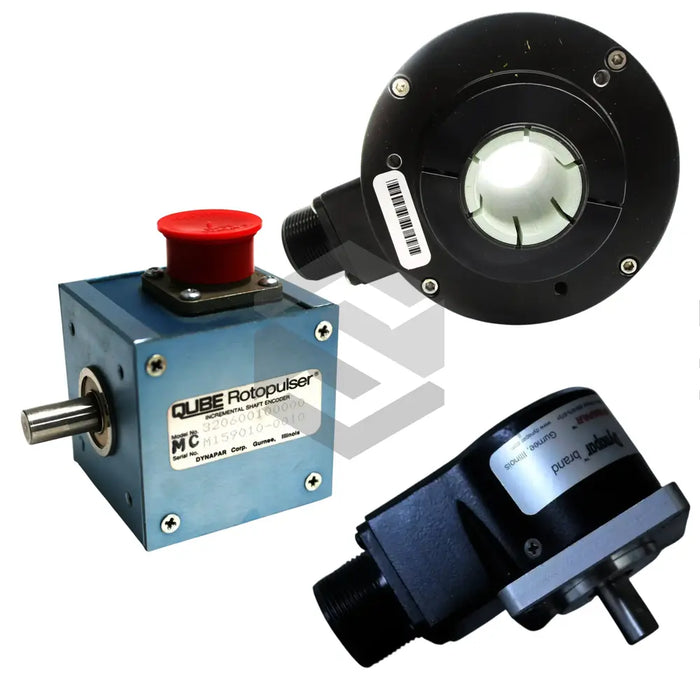

S image of H220001001225

H220001001225

by Danaher
$1,099.97 - $1,099.97
$1,099.97
$1,099.97 - $1,099.97
$1,099.97

In Stock, Ships 1 - 3 Days

The Danaher H220001001225 encoder from the Dynapar Encoders series is part of the Dynapar™ Series H20 Shafted Encoder product line, offering resolutions of 1–2540 PPR with two-channel quadrature output and optional index. It operates on 5 to 26 VDC (≤80 mA) and delivers a frequency response of ≥100 kHz (index 75 kHz ext. temp). This industrial-grade encoder supports 10 mm, 1/4″ or 3/8″ shafts and termination via MS or M12 connector or cable exit. It handles 80 lb radial or axial loads (≤1024 PPR) at 10 000 RPM and features 7272/4469 differential line drivers (40/100 mA) as well as EN61326-1 noise immunity with reverse-polarity and short-circuit protection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Differential Line Driver

7272: 40 mA; 4469: 100 mA

Electrical Input Power

5-26 VDC; ≤80 mA

Frequency Response

≥100 kHz (Index 75 kHz ext. temp)

Noise Immunity & Protection

EN61326-1; reverse polarity & short-circuit protection

Open-Collector Output

40 mA sink

Phase Sense

A leads B for CCW rotation

Product Line

Dynapar Series H20 Shafted Encoder

Push-Pull Output

40 mA sink/source

Quadrature Output Format

AB with optional Z & complementary outputs

Quadrature Phasing

90° ±22.5° electrical

Resolution

1-2540 PPR

Shaft Load >1024 PPR

40 lb radial/axial; 5,000 RPM

Shaft Load ≤1024 PPR

80 lb radial/axial; 10,000 RPM

Shaft Size Compatibility

10 mm, 1/4" or 3/8"

Starting Torque

1.0 oz-in (no seal); 2.0 oz-in (with seal)

Termination Options

MS or M12 connector; cable exit

Waveform

Squarewave, rise/fall <1 µs into 1000 pF
