HC5263600A340

by Danaher
Original price $2,753.55 - Original price $2,753.55
Original price
$2,753.55
$2,753.55 - $2,753.55
Current price $2,753.55
Condition: Unused Surplus

In Stock, Ships 1 - 3 Days

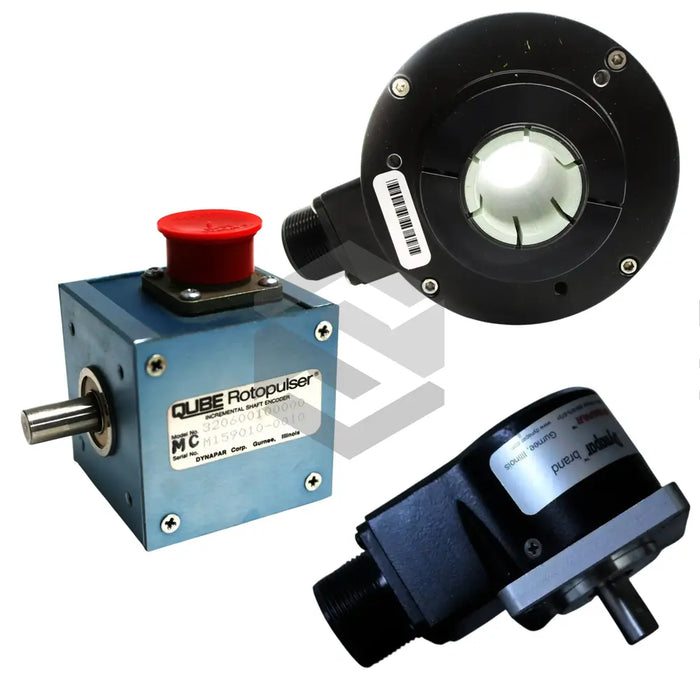

The HC5263600A340 encoder from Danaher is part of the Dynapar Encoders series. It features optical sensing technology, a resolution up to 2500 PPR, a 7272 line driver output and an IP54 rated enclosure for reliable protection. Its max frequency response is 250 kHz and it operates at up to 3600 RPM. The flange adapter with pilot mount and 9.525 mm shaft bore ensure precise alignment.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Disk Material


Glass

Duty Cycle


43–57%

Enclosure Rating


NEMA 12/IP54 or NEMA 4/IP66

Flange Material


Aluminum

Housing Material


Aluminum

Humidity Rating


up to 98% non‑condensing

Line Driver Type


7272

Mating Connector


10‑pin MS3106A‑18‑1S (6‑pin optional)

Max Frequency Response


250 kHz

Mounting Configuration


Flange adapter with pilot

Operating Temperature


0 to 54 °C

Sensing Technology


Optical

Shaft Bore Size


9.525 mm

Shaft Loading (Axial)


15 lbs

Shaft Loading (Radial)


45 lbs overhung

Shaft Material


Stainless steel

Shaft Size


5/8 inch nominal

Slew Speed


3600 RPM
