HDS02.2-W040N-HS37-01-FW

Request a quote

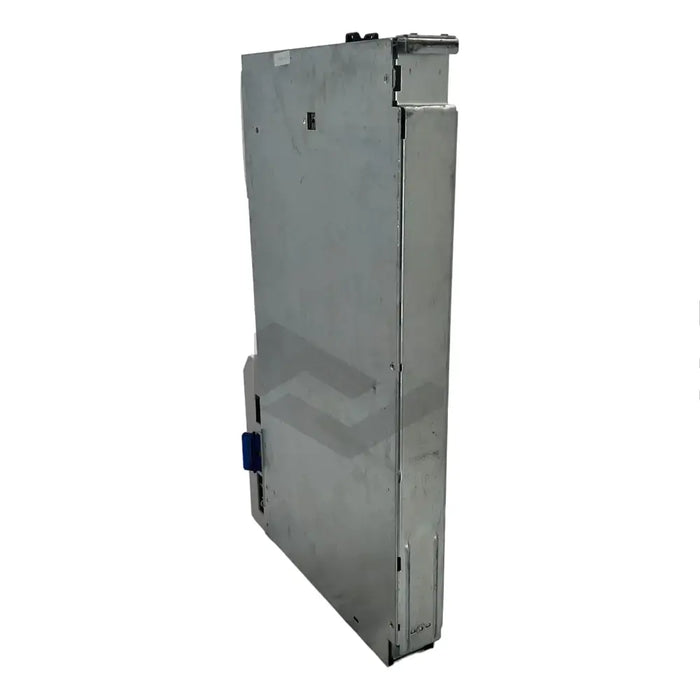

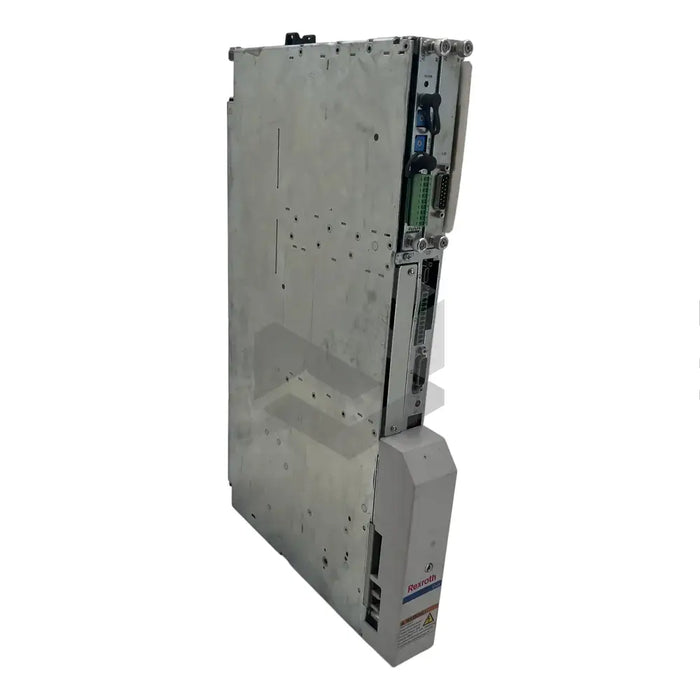

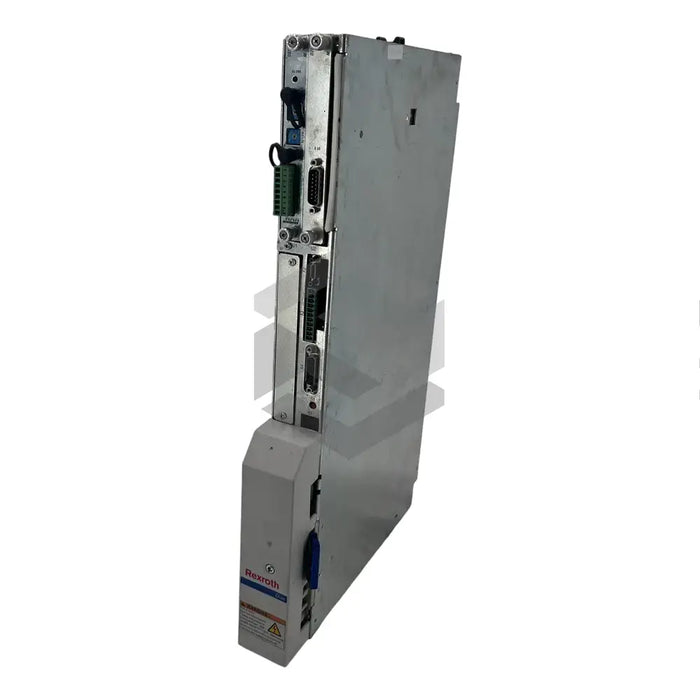

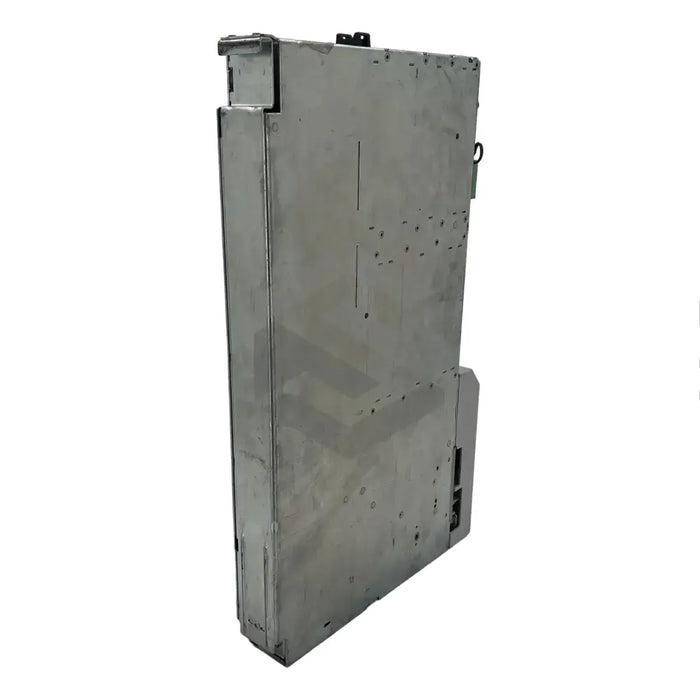

The Bosch Rexroth Indramat HDS02.2-W040N-HS37-01-FW operates as a second-generation drive controller explicitly developed for DIAX04 systems. Its design permits simultaneous installation of numerous HDS and HDD family controllers within the identical DIAX04 framework, with a single Hve/HVR power supply unit providing energy for all controllers in situ. The controller has defining performance specifications like 40 Amps of rated and peak current, 20 Amps current at 4kHz power section frequency and 15 Amps current at 8kHz. Its operation at 40 Amps continuous current results in a power loss of 125W. A maximum of 1000 meters installation altitude and an ambient temperature between 5 to 45 degrees Celsius are ideal for optimal performance. The controller, weighing 6.5 kg with dimensions of 498 x 50 x 265 millimeters, possesses a function ID code 37 and version function code 01. Its modular design includes a factory-installed SERCOS command communication module, an integrated blower for convection cooling, with Rexroth advocating for a respective clearance of 80 mm and 100 mm above and below and, 90 mm in front. For safety and equipment protection, expert handling is advised.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: HDS02.2-W040N-HS37-01-FW
  • System: DIAX04 systems
  • Rated Current: 40 Amps
  • Peak Current: 40 Amps
  • Current at 4 khz: 20 Amps
  • Current at 8 khz: 15 Amps
  • Power Loss at Continuous Current: 125 Watts
  • Maximum Installation Altitude: 1000 meters
  • Ambient Temperature: 5 to 45 degrees Celsius
  • Weight: 6.5 kilograms
  • Dimensions: 498 x 50 x 265 mm
  • Firmware Location: Software Module
  • Version Function Code: 01
  • Function ID Code: 37
  • Communication Module: SERCOS command communication module
  • Cooling: Integrated blower
  • Recommended Clearance Above: 80 mm
  • Recommended Clearance Below: 100 mm
  • Recommended Clearance in Front: 90 mm
  • Installation and Maintenance: Trained Personnel Only
