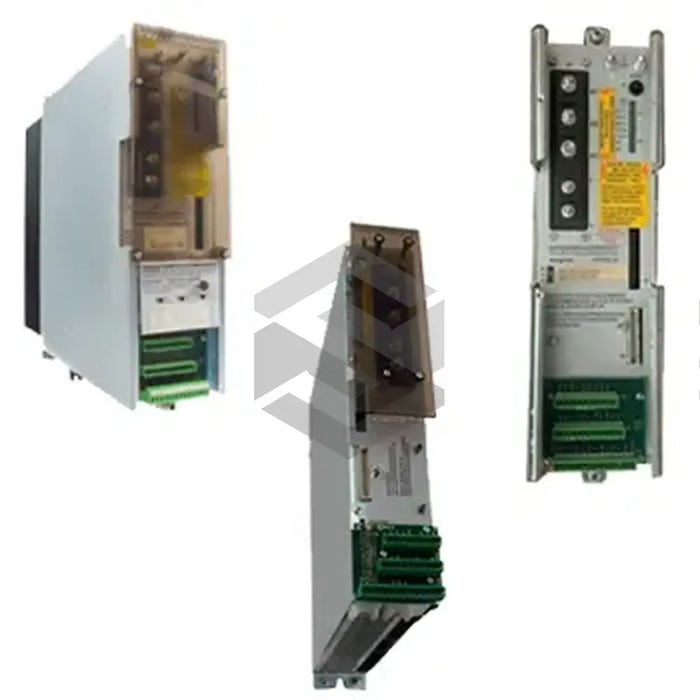

KDS 1.3-150-300-W1/S104

Request a quote
The KDS 1.3-150-300-W1/S104, a servo drive module produced by Bosch Rexroth Indramat, is tailored for MAC 90 to MAC 160 motors. Using cold-running technology, the module mitigates heat loss in the control cabinet via its incorporated external heat exchanger. A built-in fan facilitates forced ventilation, while the unit relies on an external LE4 fan for additional support. The product exhibits a 150A current type and peak current, complemented by a 96A continuous current, with a link circuit rated voltage of DC 300V (± 15%). The module weighs 15.4kg and delivers 45kW of continuous power. It must operate at temperatures between +5 and +45 degrees Celsius, but can withstand up to +55 degrees Celsius. The servo drive's maximum permissible altitude is 1000m and exhibits a DIN 40 040, humidity classification F, and DIN VDE 0110, insulation category C. It has an IP 10 protection degree, indicating resistance to harmful solids but not water ingress.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Module
  • Model: KDS 1.3-150-300-W1/S104
  • Suitable For: MAC 90 to MAC 160 motors
  • Technology: Cold-running
  • Cooling System: Built-in fan, External fan unit LE4
  • Fan Unit Weight: 4.2kg
  • Current Type: 150A
  • Peak Current: 150A
  • Continuous Current: 96A
  • Link Circuit Voltage: DC 300V (± 15%)
  • Product Weight: 15.4kg
  • Continuous Power: 45kW
  • Ambient Temperature Range: +5 degrees Celsius to +45 degrees Celsius
  • Maximum Ambient Temperature: 55 degrees Celsius
  • Mounting Altitude: up to 1000m above sea level
  • Humidity Classification: F (DIN 40 040)
  • Insulation Category: C (DIN VDE 0110)
  • Protection Level: IP 10
  • Protection Against: Hazardous parts, Ingress of solid objects greater than 50mm
  • Seller: Servo Supplier
