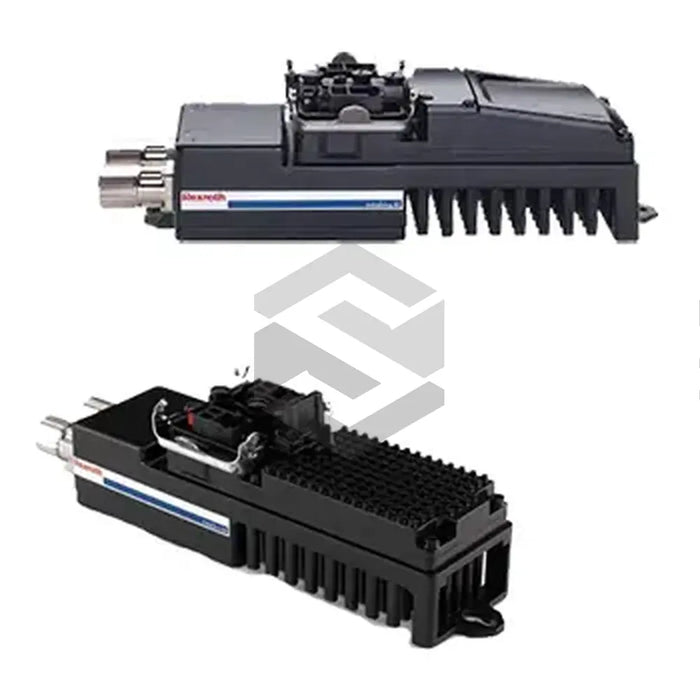

series image of KMS03.1B-B036-P-D7-ET-END-SD-ES-FW

KMS03.1B-B036-P-D7-ET-END-SD-ES-FW

by Bosch Rexroth Indramat
$0
$2,268.97 - $2,268.97
$2,268.97
$2,268.97 - $2,268.97
$2,268.97
Available, Shipping Varies
 More payment options
The Bosch Rexroth Indramat KMS03.1B-B036-P-D7-ET-END-SD-ES-FW is a compact servo drive designed for indoor use and positioned close to the motor in a drive system. It utilizes cold plate mounting and features both a thermal and multi-encoder interface without a heat sink. The unit contains two fast probe inputs and adheres to IEC 61131-3 standards for integrated motion logic. With a maximum capacity of 30 drives per HMV power supply line, it can be used alongside a KNK mains filter to reduce mains pollution and radio interference. Despite its indoor design, it can function outside a control cabinet due to its IP 65 protection class, as per IEC 60529 specifications. The optimal operation temperature range is 0 °C to 40°C. Notably, it boasts CSA Certification and UL Listing. Additional features include a programming module, Safe Motion safety option, two multi-Ethernet modules, and Hiperface/Digital Encoder interface, with the unit's key details documented on its attached rating plate. It operates optimally up to an elevation of 1000 m.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: KMS03.1B-B036-P-D7-ET-END-SD-ES-FW servo drive
  • Construction: Compact
  • Usage: Indoor
  • Cable Connection: Manufacturer supplied cables only
  • Mounting Style: Cold plate
  • Heat Sink: None
  • Interfaces: Thermal and multi-encoder
  • Probe Inputs: Two fast
  • Motion Logic: Integrated as per IEC 61131-3 specifications
  • Drive Support: Maximum of 30 per line with HMV power supply
  • Optional Filter: KNK mains
  • DC Bus Link Voltage: 750 VDC
  • IP Protection Class: IP 65 as per IEC 60529 specifications
  • Certifications: CSA Certified, UL Listed
  • Operating Temperature: 0 °C to 40 °C
  • Programming Module Location: X107 connecting point
  • Safety Feature: Safe Motion
  • Encoder Interfaces: Encoder Hiperface, digital encoder
  • Ethernet Modules: Two multi-Ethernet for master communication
  • Rating Plate: Attached to housing with pertinent technical details and 2D barcode
  • Maximum Installation Elevation: 1000 m over sea level.
