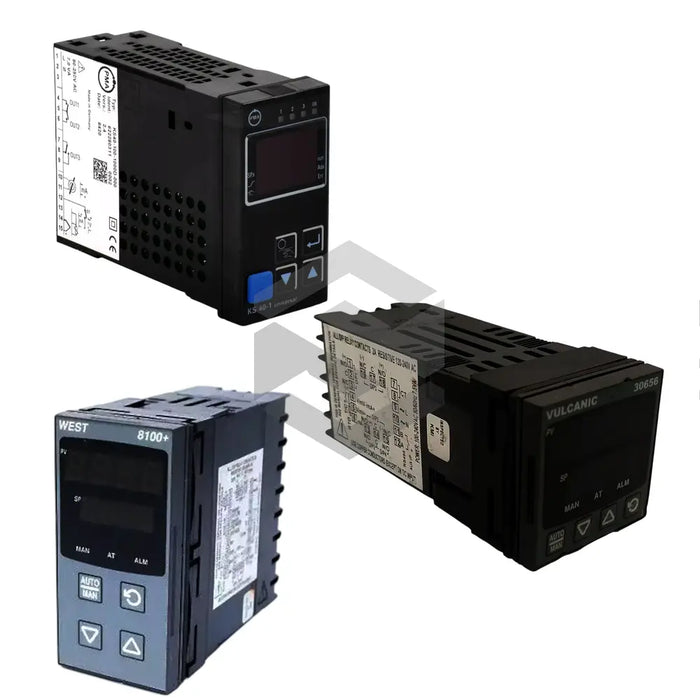

The KS40-102-00090-049 from Danaher features on/off control and self-tuning PID. Part of the Thermal Controllers series, it supports RS485 Modbus RTU at up to 19200 bps. It delivers >14-bit input resolution, a 0.000–9999 s filter and 100 ms scan.
Output is 0–10 V or 0/4–20 mA with 0.1% resolution and 0.2% accuracy. The panel-mount unit fits a 48×48 mm bezel and 45×45 mm cut-out. Power can be 100–240 V AC or 22–65 V DC.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Analog outputs
0-10 V, 0/4-20 mA; resolution 0.1%; accuracy 0.2%
Approvals & compliance
CE, UL/cUL, CSA; EMI EN61326-1; Safety UL/EN61010-1
Comm interface
RS485 Modbus RTU/ASCII, 1200-19200 bps
Control modes
On/off, 2-point, PID, delta/star, 3-point stepping
Dimensions
48x48 mm bezel; 45x45 mm cut-out; 110 mm depth
I/O options
Configurable digital; auxiliary analog inputs
Input resolution
>14-bit; filter 0.000-9999 s; scan 100 ms
Mounting
Panel mount; straps & screw terminals
Power supply
22-65 V DC (≤5 W) or 100-240 V AC 50/60 Hz (≤7.5 VA)
Self-tuning
Automatic PID
SSR drive
≥10 V into 500 Ω
Temp range
0°C to 55°C (oper); -20°C to 80°C (stor)
Transmitter supply
22 mA at ≥18 V
Warranty
1 year
Weight
0.21 kg
