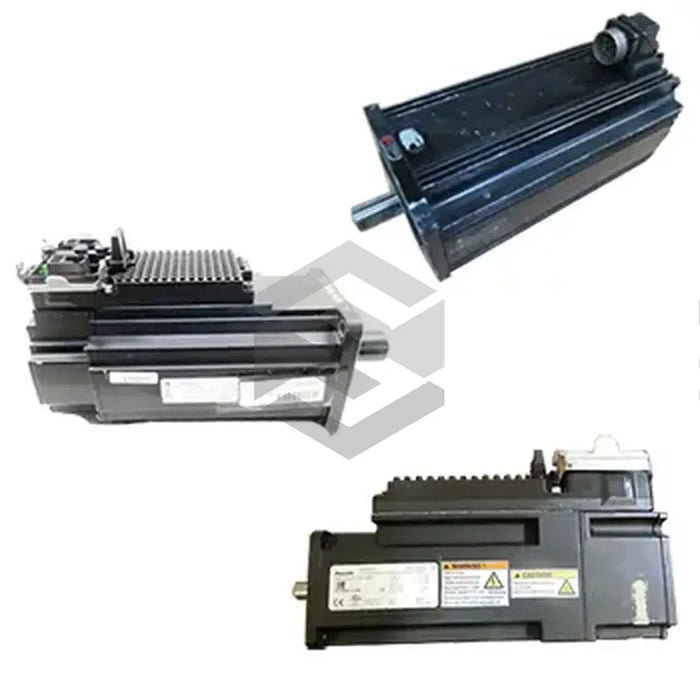

S image of KSM01.2B-076C-35N-M1-HP2-SE-NN-D7-NN-FW

KSM01.2B-076C-35N-M1-HP2-SE-NN-D7-NN-FW

by Bosch Rexroth Indramat
$6,019.98 - $15,929.60
$6,019.98
$6,019.98 - $15,929.60
$6,019.98
Bosch Rexroth Indramat's product, KSM01.2B-076C-35N-M1-HP2-SE-NN-D7-NN-FW, is a digitally-operated servo drive incorporating a synchronous servo motor based on Rexroth IndraDyn S. The motor is blended with a complex built-in electronic system consisting of inverters and control sections, and features a shaft with a keyway and sealing ring. The size code of the drive corresponds to 76, with the motor winding reflected by the C length code. Cooling is achieved through natural convection and hybrid electrical connectors support the drive's functionality. It operates on a SERCOS 2 master communication interface and a holding brake, rated for 24V DC, is integrated. The KSM series' motor can reach speeds up to 4700 RPM, while its housing offers IP 65 protection. The drive has an output power of 1240 Watts and functions optimally in ambient temperatures of 0-40 degrees Celsius. Installation should occur while disconnected from the power supply.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital Servo Drive

Model Number

KSM01.2B-076C-35N-M1-HP2-SE-NN-D7-NN-FW

Motor Type

Synchronous Servo Motor

Motor Shaft

Keyway with Shaft Sealing Ring

Motor Winding Code

35

Cooling Method

Natural Convection

Motor Feedback

Multiturn Absolute Hiperface Optical Encoder with 128 increments

Electrical Connector

Hybrid

Connecting Voltage

750 Volts DC

Communication Interface

SERCOS 2

Holding Brake

24 Volts DC Electrically Released Type with 16 Nm holding torque, 30 milliseconds clamping delay and 50 milliseconds release time

Weight

15.6 Kilograms

Maximum Rotor Speed

4700 RPM

Housing Protection Degree

IP 65 according to IEC 60529

Power Output Rating

1240 Watts

Ambient Operating Temperature

0 to 40 degrees Celsius

Installation Procedure

Motor should be installed when disconnected from power supply.
