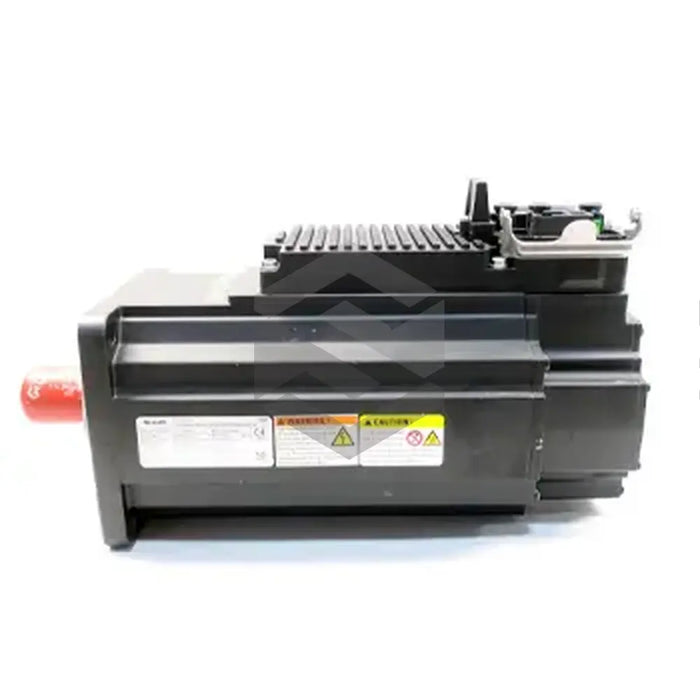

P image of KSM02.1B-041C-42N-M1-HG0-ET-L3-D7-NN-FW

KSM02.1B-041C-42N-M1-HG0-ET-L3-D7-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch KSM02.1B-041C-42N-M1-HG0-ET-L3-D7-NN-FW integrates a drive and servo motor into one compact design and supports Multi-Ethernet communication for various automation environments. It boasts a safety feature named safe torque off (STO), creating safety zones and facilitating safe motion. The STO feature ensures no torque-generating energy impacts the motor until STO removal. The device also contains an optical encoder, supporting the Hiperface protocol, and offers firmware options that must be ordered separately. The motor posses a maximum rated speed of 5500 RPM, a torque constant of 1.6 Nm/A at 20 degrees Celsius, and a maximum torque of 9.4 Nm. It accepts a rated input voltage of 540 to 750 Volts DC, produces a rated power output of 470 watts, and dissipates heat at 70 watts. This compact machine operates within an ambient temperature range of 0 to 40 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive and Servo Motor in One Housing

Communication Protocol

Multi-Ethernet

Safety Feature

Safe Torque Off (STO)

Encoder

128-increment multiturn with Hiperface protocol

Shaft Type

Plain with Sealing Ring

Motor Size

041

Motor Length

C

Winding Code

42

Maximum Speed

5500 RPM

Thermal Class

155 (EN 60034-1)

Torque Constant

1.6 Nm/A at 20 degrees Celsius

Maximum Torque

9.4 Nm

Maximum Current

6.9 Amps

Rated Input Voltage

540 to 750 Volts DC

Rated Power Output

470 Watts

Rated Heat Dissipation

70 Watts

Cooling Method

Natural Convection

Required Ambient Temperature

0 to 40 degrees Celsius

Device Length

252 millimeters

Device Height

194 millimeters
