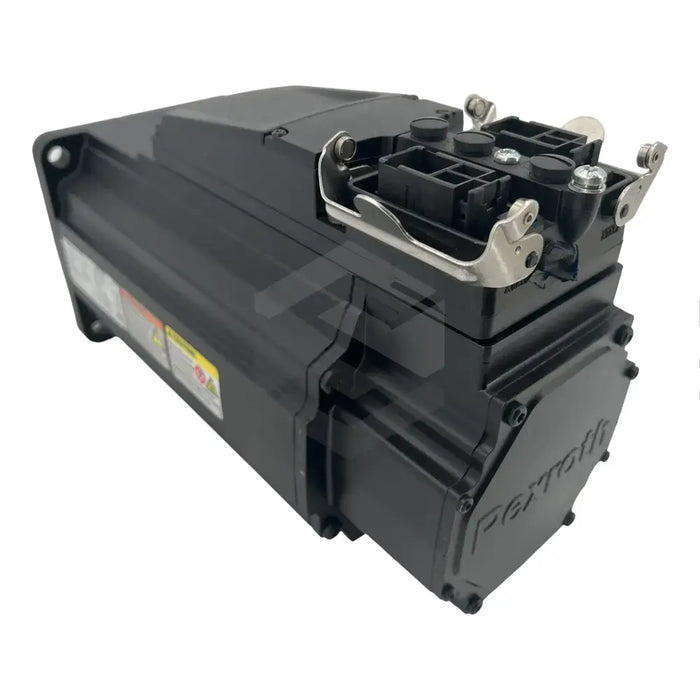

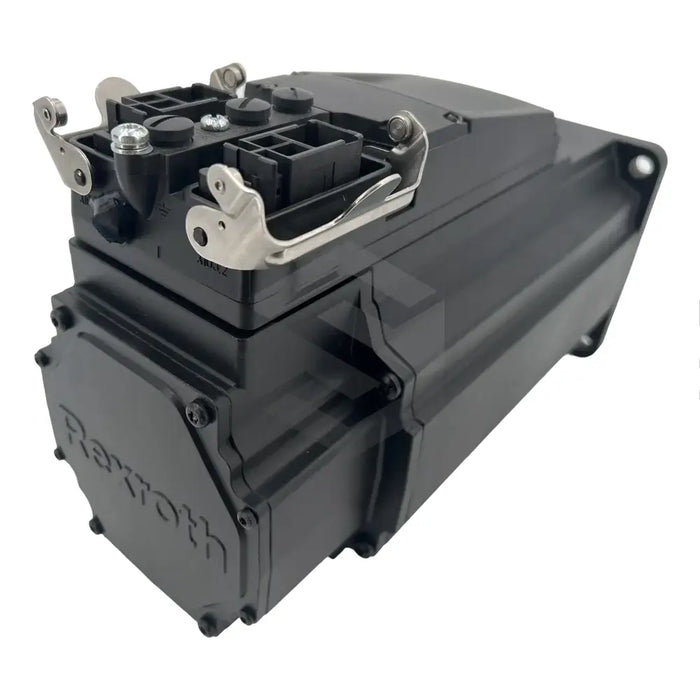

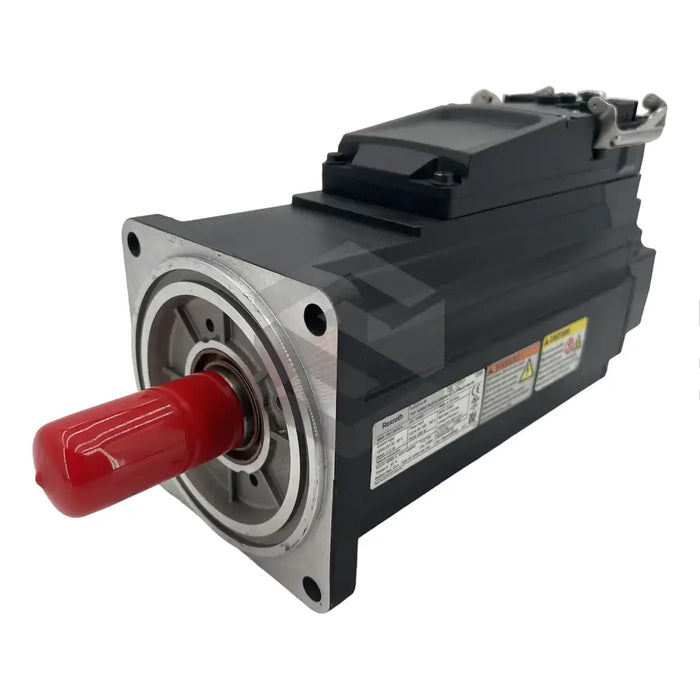

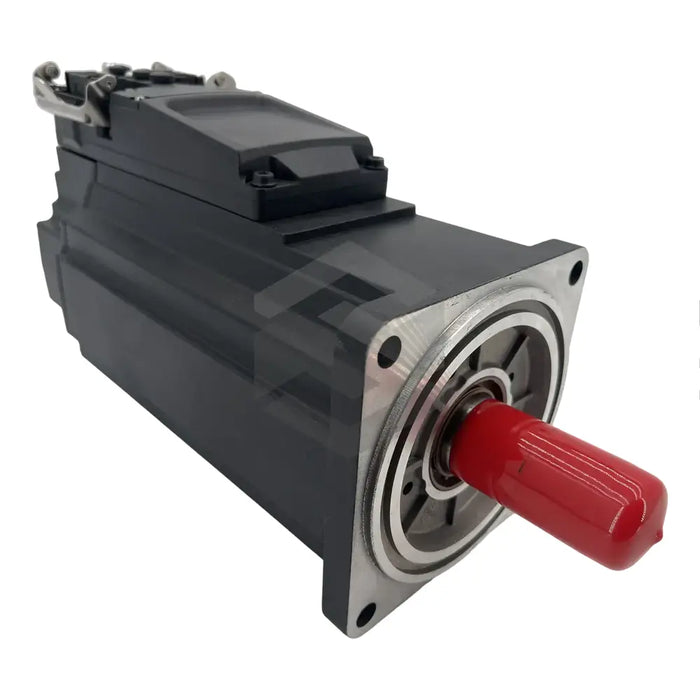

The KSM02.1B-071C-35N-M3-HP0-ET-NN-D7-NN-FW is a distributed servo drive produced by Bosch Rexroth Indramat, renowned for their long-lasting industrial automation products. This model is commonly used in applications like mounting systems, printing machines, and robotics. The KSM02.1B-071C-35N-M3-HP0-ET-NN-D7-NN-FW operates with a DC 540 - 750 V power supply and uses an optical encoder for motor motion monitoring and control. It doesn't come with a holding brake and is intended for operation under specified atmospheric conditions amidst 0 to +40 degree Celsius. Installation should be in a dust and moisture-free environment, and it is capable of a maximum speed of 4700 rpm. With a weight of 14 kg, the model can be conveniently placed in the desired position. It is IP 65 protected, has class 155 insulation, offers continuous torque at the output shaft and is equipped with hybrid connectors for efficient electrical connections.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: KSM02.1B-071C-35N-M3-HP0-ET-NN-D7-NN-FW
  • Applications: Mounting systems, Printing machines, Robotics
  • Cooling Method: Natural Convection
  • Power Supply: DC 540 - 750 V
  • Encoder: Optical encoder
  • Holding Brake: No
  • Installation: By Qualified Personnel
  • Operating Conditions: Specified Atmospheric Conditions
  • Ambient Temperature: 0 to +40 degree Celsius
  • Location Conditions: Free from dust and moisture
  • Humidity: 0 to 90%
  • Connectors: Hybrid Connectors
  • Shaft: Continuous Torque Output, Keyway type with sealing ring
  • Protection: IP 65
  • Insulation: Class 155
  • Weight: 14 kg
  • Maximum Speed: 4700 rpm
