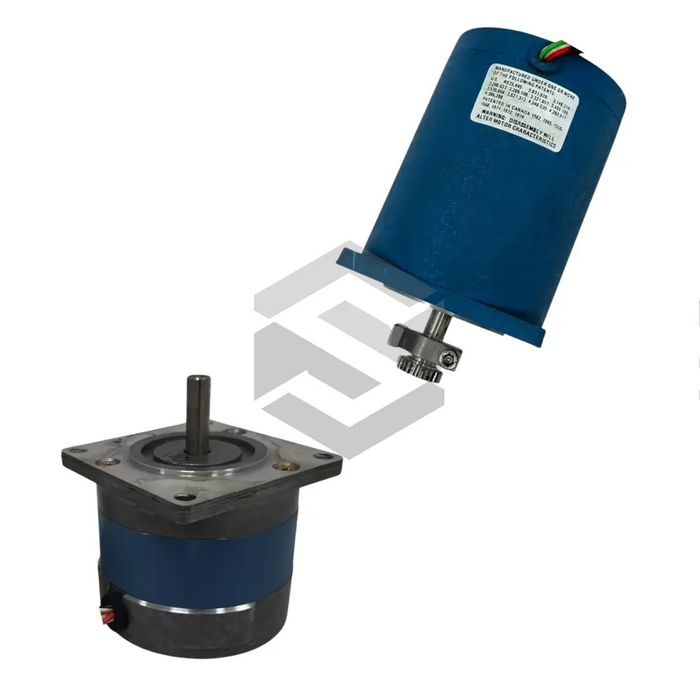

S image of M063-FD06U

M063-FD06U

by Danaher
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The M063-FD06U from Danaher features a supply voltage of 5 VDC and a maximum slew speed of 15,000 rpm. Part of the Slo-Syn Stepping Motors series, it delivers acceleration up to 100,000 rad/sec^2 and weighs 2.1 ounces. It offers dual-channel quadrature output and a bearing life of 2e9 revolutions.

It has two #4-40 mounting holes on a 1.812 in bolt circle and bore size options of 0.250 or 0.375 in. The moment of inertia is 2.6 to 5.0 x10^-4 oz-in-sec^2. Its compact design suits space-constrained automation systems.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Acceleration

100,000 rad/sec^2

Bearing life (L10)

2e9 revolutions

Bore size

0.250 or 0.375 in

Frequency response

Up to 100 kHz; <=0.5% at 50 kHz; <=1%

Max slew speed

15,000 rpm (7,000 rpm alt)

Minimum shaft length

0.56 in

Moment of inertia

2.6-5.0 x10^-4 oz-in-sec^2

Mounting holes

2 x #4-40 on 1.812 in BC at 180°

Output format

Dual-channel quadrature, >=45° edge sep; index & comp.

Required shaft length

0.70 in

Shaft diameter (large bore)

0.3745-0.3750 in

Shaft diameter (small bore)

0.2495-0.2500 in

Shaft endplay

-0.010 to -0.060 in

Shaft-to-mount perpendicularity

0.005 in TIR

Strain relief pull-out strength

10 lb pull

Supply voltage

5 VDC

Weight

2.1 oz (6 oz alt)
