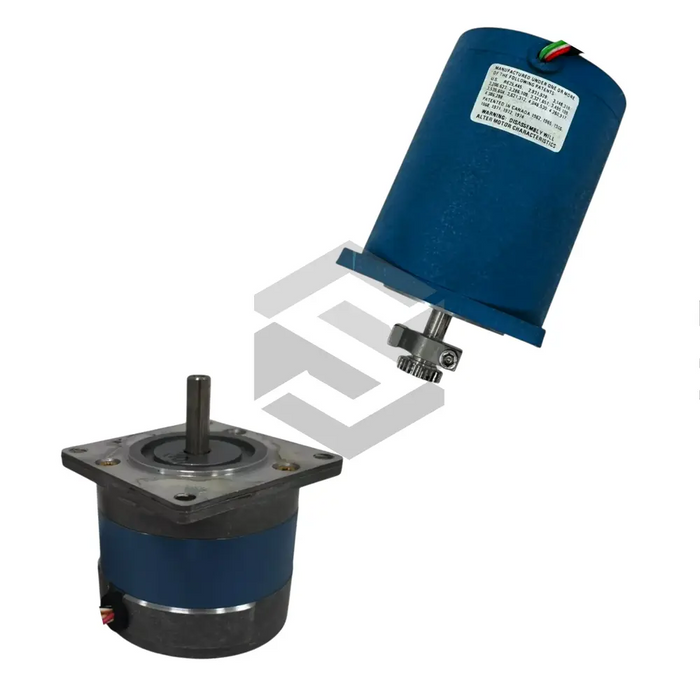

S image of M091-FD-456

M091-FD-456

by Danaher
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The M091-FD-456 stepping motor from Danaher’s Slo-Syn Stepping Motors series delivers precise and durable performance. It runs on 5 VDC, offers selectable cycles per revolution up to 1250 lines, tops out at 15,000 rpm, and features dual-channel quadrature output. It has a bearing life (L10) of 2 billion revolutions and operates between –10 °C and +80 °C. A 100 kHz frequency response ensures accurate high-speed control.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Acceleration

100,000 rad/sec²

Bearing Life (L10)

2 billion revolutions

Bore Size

0.250 or 0.375 in

Cycles Per Revolution

200, 400, 500, or 1250 lines/rev

Frequency Accuracy

≤3.0 arc minutes

Frequency Modulation

≤0.5% @50 kHz (1% w/ complements)

Frequency Response

100 kHz

Mounting Holes

2×#4-40 on 1.812 in BC; ≤0.005 in TIR

Operating Temperature

–10°C to +80°C (to +100°C w/ complements)

Output (Differential)

26LS31 drivers, sink 20 mA

Output (TTL)

Square-wave TTL, sink 10 mA; short-circuit protected

Output Format

Dual-channel quadrature; min 45° separation

Shaft Dimensions

Ø0.2495–0.2500 or 0.3745–0.3750 in; ≥0.70 in length

Slew Speed

Up to 15,000 rpm (7,000 rpm alt config)

Storage Temperature

–20°C to +100°C (or –40°C to +110°C)

Supply Voltage

5 VDC
