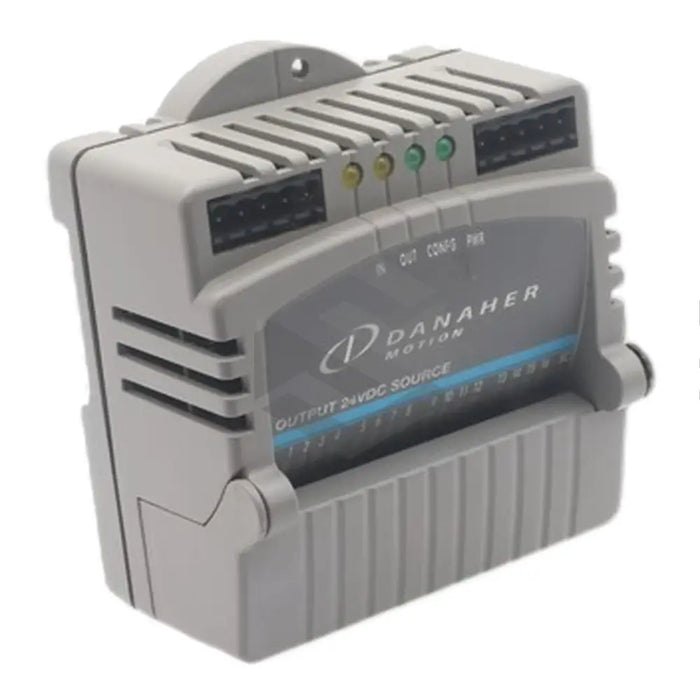

C image of M.1017.3095 | Main (Front Left)

M.1017.3095

by Danaher
$2,487.50 - $3,037.50
$2,487.50
$2,487.50 - $3,037.50
$2,487.50
The Danaher M.1017.3095 is part of the Block IO Analog Modules series from Danaher. It offers optical isolation between logic and field, a nominal 24 VDC supply range (20–30 VDC), two 12-pin screw-terminal connectors, and a surge current rating of 25 A for 130 µs. The module supports two groups of eight solid-state switches with up to 4 A continuous output per group. It includes short-circuit protection delivering 130 µs pulses every 100 ms until faults clear.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

DC Source Requirements

Nominal 24 VDC (20–30 VDC range)

Field Side Connector

2 × 12-pin screw-terminal connectors

Leakage Current (Off State)

≤0.5 mA

Logic Protection

Optical isolation; transient suppression on 24 V supply

Max Current per Group

4 A continuous

Max Current per Switch

0.5 A continuous

Off‑State Response Time

≤50 μs (resistive load)

On‑State Response Time

≤50 μs (resistive load)

Output Group Powering

Groups can use separate DC supply or daisy‑chain

Output Groups

2 groups of 8 solid-state switches

Short‑Circuit Protection

130 μs pulses every 100 ms until fault removed

Surge Current

25 A for 130 μs every 100 ms

Switch On‑State Voltage

≤1 VDC
