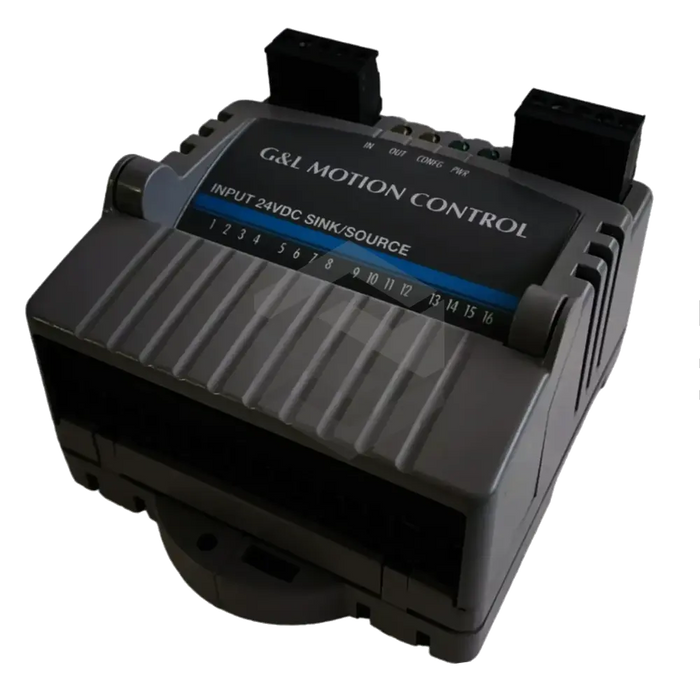

S image of M.1017.3140

M.1017.3140

by Danaher
$6,708.63 - $6,708.63
$6,708.63
$6,708.63 - $6,708.63
$6,708.63

In Stock, Ships 1 - 3 Days

The Danaher M.1017.3140 from the Block IO Analog Modules series is a compact Block Output ±10 V DC Module (4-Channel) featuring a coated housing and four LED indicators for power and status monitoring. It provides four independent output channels with 16 bits (65,536 steps) resolution, delivering ±10 mA per channel (with 1 kΩ load) and voltage accuracy of ±1% FSR. Powered by an external 24 V DC supply (operating range 20–30 V DC, 200 mA), it incorporates current-limited short-circuit protection and responds to scan loss by resetting outputs to 0 V ±50 mV. The module connects via two 12-pin screw terminals and withstands inrush currents up to 2.5 A for 250 µs.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Coated housing

Yes

Field-side connector

Two 12-pin screw terminals

Inrush current

2.5 A for 250 µs

Max output current

±10 mA (with 1 kΩ resistor)

Module type

Block Output ±10 V DC Module (4‑Channel)

Nominal voltage range

±10 V DC

Operating voltage range

20–30 V DC

Outdoor operation

Not allowed

Output channels

4

Output voltage after power-up

0 V ±50 mV

Resolution

16 bits (65,536 steps)

Response to scan loss

All outputs reset to 0 V ±50 mV

Short-circuit protection

Current-limited

Supply current

200 mA

Voltage accuracy

±1% FSR
