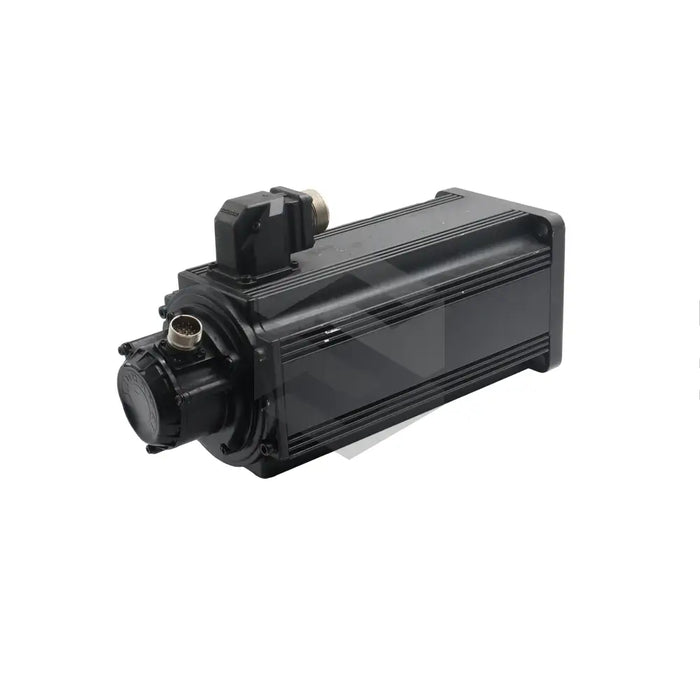

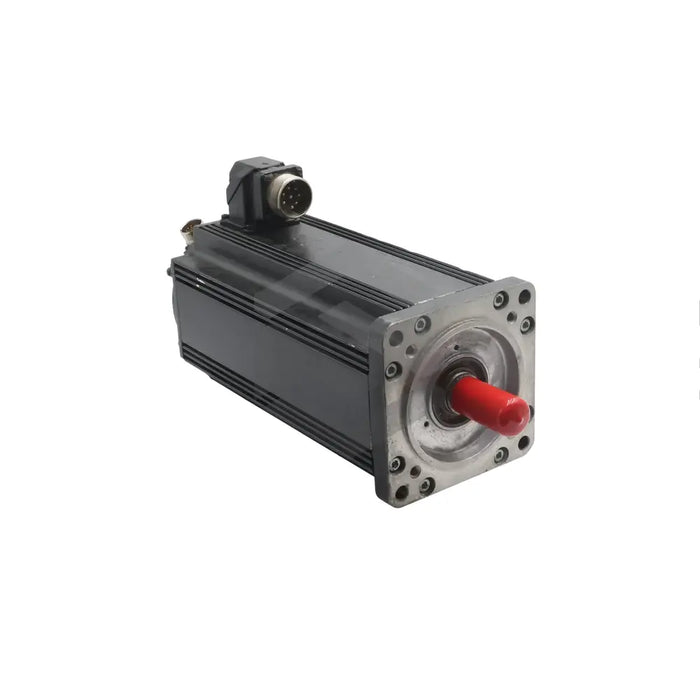

subseries image of MDD093C-L-030-N2M-130GA2

MDD093C-L-030-N2M-130GA2

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat MDD093C-L-030-N2M-130GA2 is a digital servo motor from the MDD product line, featuring a multi-turn encoder and digital servo feedback. Its frame size is 093 with a C frame length and a total length of about 386 millimeters. This 22kg servo motor has a plain 24mm-diameter shaft and comes with 11mm-diameter mounting holes on its approximately 140mm flange. An optional 1.1 kg blocking brake can be installed with release and clamping delays of 70 and 30 milliseconds, respectively. It can function through natural convection or with an optional blower for surface cooling. The rated motor speed is 3000 RPM and the optimal operating environment ranges from 0 to +45 degrees Celsius, and an installation elevation of 0 to 1000 meters. The motor's power connection is located on side A of the housing.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MDD
  • Product Type: Digital Servo Motor
  • Frame Size: 093
  • Frame Length: C
  • Total Length: 386 millimeters
  • Mounting Hole Diameter: 11 millimeters
  • Motor Flange Size: 140 millimeters
  • Shaft Type: Plain
  • Shaft Diameter: 24 millimeters
  • Motor Mass: 22 kilograms
  • Optional Brake Mass: 1.1 kilograms
  • Brake Release Delay: 70 milliseconds
  • Brake Clamping Delay: 30 milliseconds
  • Brake Voltage: 24 Volts DC
  • Brake Current: 0.7 Amps
  • Brake Moment of Inertia: 0.00036 kg m2
  • Cooling Method: Natural Convection/Surface Cooling (with optional blower)
  • Continuous Torque at Standstill: 19.5 Nm (natural convection), 20.8 Nm (surface cooing)
  • Continuous Current at Standstill: 32.2 Amps (natural convection), 34.3 Amps (surface cooling)
  • Motor Rotor Moment of Inertia: 0.00042 kg m2
  • Rated Motor Speed: 3000 RPM
  • Operating Conditions: 0 to +45 degrees Celsius ambient temperature, 0 to 1000 meters installation elevation
  • Motor Power Connection: Side A of the housing.
