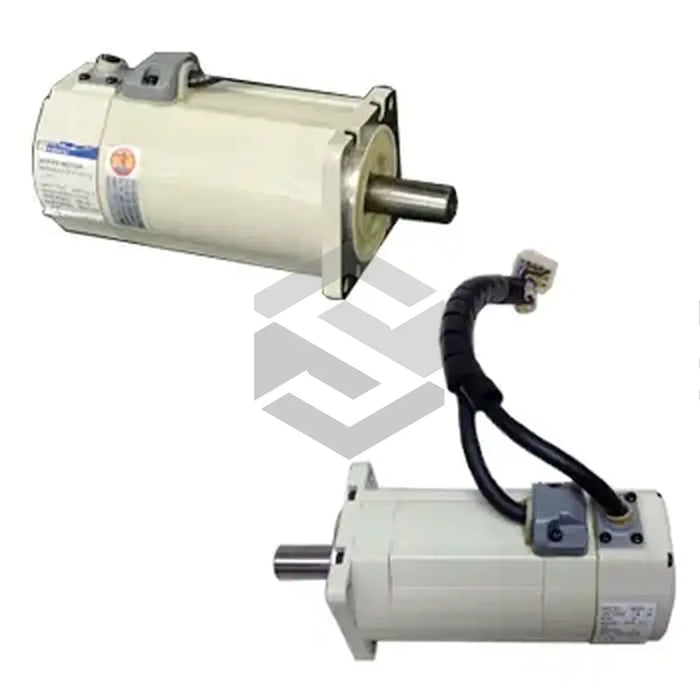

manufacturer image of MMD082A-030-EG1-CN

MMD082A-030-EG1-CN

by Bosch Rexroth Indramat
Request a quote
The MMD082A-030-EG1-CN is a professional-grade servomotor designed and manufactured by Bosch Rexroth Indramat. Special attention must be given to the proper connection of power supply terminals, grounding, and connection of the motor terminal to each phase coil in the servomotor. This motor can be shipped worldwide. The unit's feedback is achieved via an incremental encoder with a winding code of 030 and features 2,500 increments. The motor must not be restarted after an alarm until the issue is resolved, as this may lead to malfunction. The product has a voltage rating of 200V. The motor's dynamic brake activates when power supply is interrupted, with a brake voltage rating of 24V and a current rating of 0.4A. The motor's speed can reach up to a theoretical maximum of 4,500min-1. The output signal of the driver controls the brake of this motor, which is displayed on an LED display.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product ID: MMD082A-030-EG1-CN
  • Product Type: Servomotor
  • Power Supply Input: Not intended for inverse connection
  • Output Terminal: Not intended for grounding
  • Grounding Requirements: Connection of motor and driver terminals, one-point grounding using Class 3 or higher grounding
  • Motor Connection Terminal: Connected to each phase coil in servomotor
  • Winding Code: 030
  • Feedback: Incremental encoder with 2,500 increments
  • Troubleshooting Requirement: Motor must be restarted post-alarm after identifying cause
  • Voltage Rating: 200V
  • Relay Cable: Requires shielding connection
  • E-Terminal: Needs to be connected to ground terminal
  • Power Supply Interruption: Supply cuts off, dynamic brake activated when COM-connection is opened
  • Speed Display: LED display indicates speed with polarity
  • Brake Control: Regulated by the driver output signal
  • Shaft Type: Plain shaft with sealing ring
  • Nominal Motor Speed: 3,000min-1
  • Maximum Theoretical Speed: 4,500min-1
  • Brake Voltage Rating: 24V
  • Brake Current Rating: 0.4A
