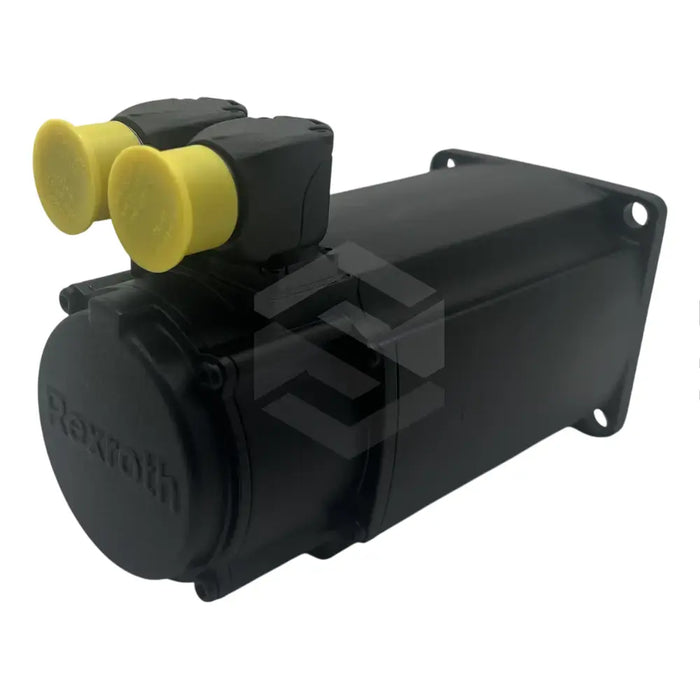

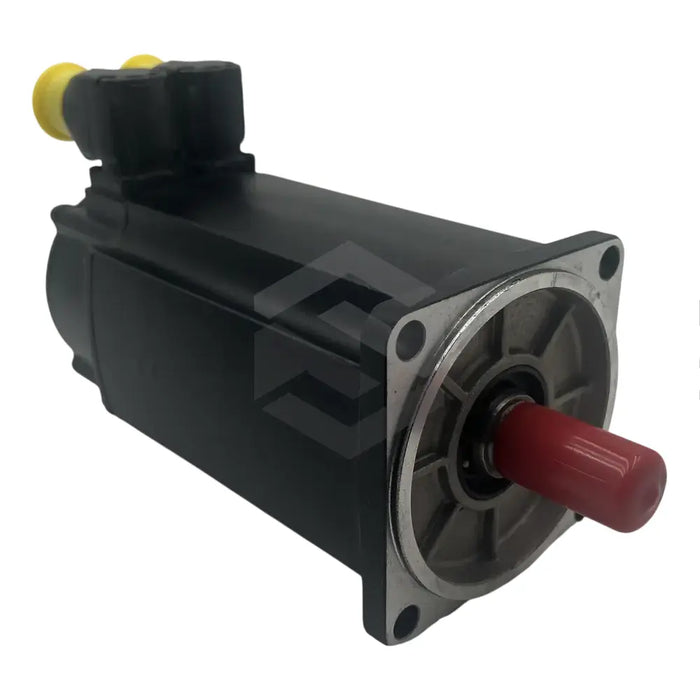

series image of MSK050C-0300-NN-S2-UG0-RNNN

MSK050C-0300-NN-S2-UG0-RNNN

by Bosch Rexroth Indramat
$3,520.13 - $3,520.13
$3,520.13
$3,520.13 - $3,520.13
$3,520.13
Available, Shipping Varies
The MSK050C-0300-NN-S2-UG0-RNNN, produced by Bosch Rexroth Indramat, is a highly innovative synchronous servomotor under the IndraDyn S series, setting new industry standards for automation. Known for its compact design, exceptional precision, high dynamics, and high torque density, this 5.4kg servomotor has a frame size of 50 and a frame length of C. Enclosed in a protective housing, its heat dissipation is facilitated by natural convection. It offers a maximum operating speed of 4700 RPM, a maximum torque of 15 Nm, and a peak current of 12.4A. This model features a single-turn optical encoder with 2048 increments to facilitate efficient electronic communication with associated equipment. Additionally, it comes with a rotatable electrical connection plug and a standard, plain shaft with a sealing ring for water resistance. Notably, this model does not include an integrated holding brake as some other variants do.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: IndraDyn S series
  • Model: MSK050C-0300-NN-S2-UG0-RNNN
  • Weight: 5.4 kg
  • Frame Size: 50
  • Frame Length: C
  • Housing: Yes
  • Heat Dissipation: Natural Convection
  • Encoder Type: Single-turn Optical Encoder
  • Encoder Increments: 2048
  • Maximum Torque: 15 Nm
  • Maximum Current: 12.4 A
  • Maximum Speed: 4700 RPM
  • Rotor Inertia: 0.00033 kgm2
  • Permissible Sound Pressure Level: Below 75 dB
  • Electrical Connection Plug: Yes, Rotatable up to 240 degrees
  • Shaft Design: Standard and plain
  • Sealing Ring: Yes
  • Holding Brake: No
  • Shaft Run-out: Reduced according to DIN 42955.
