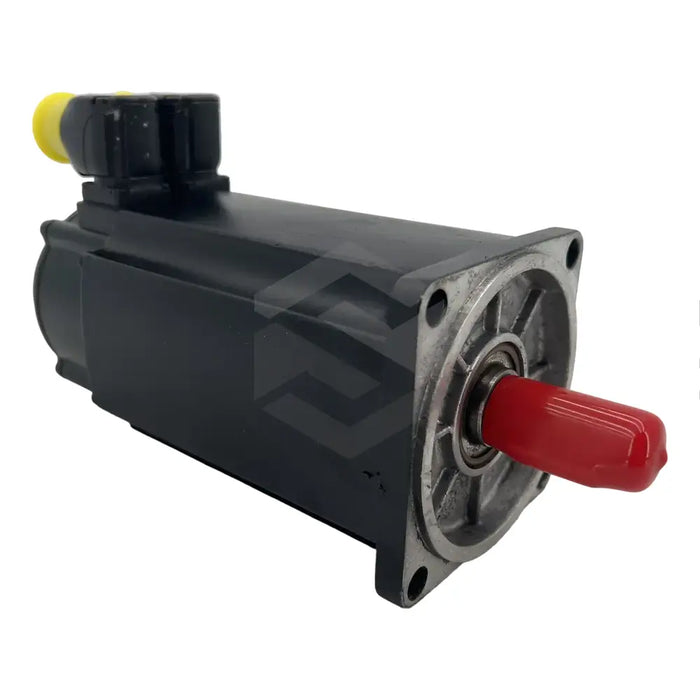

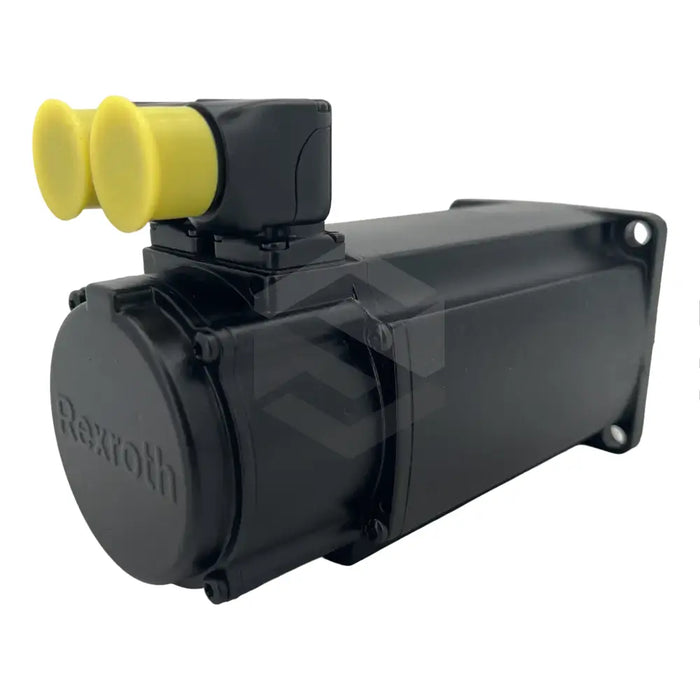

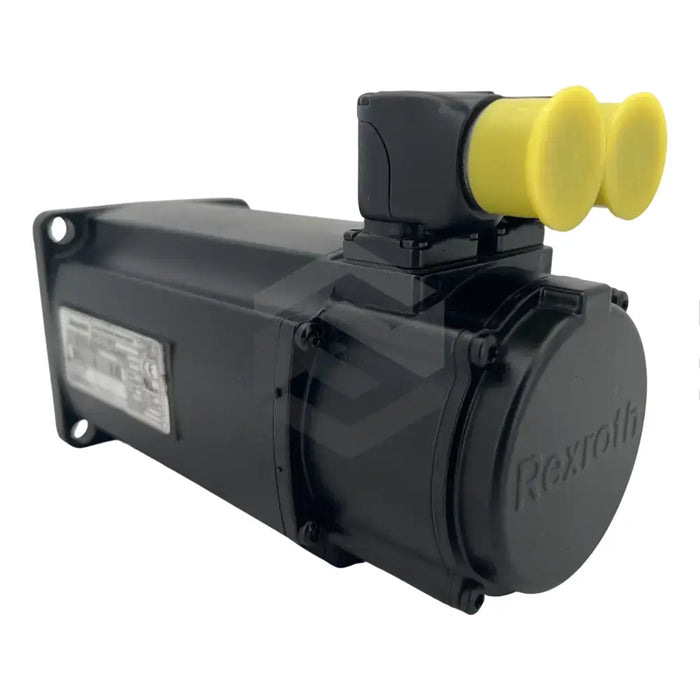

series image of MSK050C-0600-NN-M2-UP1-RNNN

MSK050C-0600-NN-M2-UP1-RNNN

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's MSK050C-0600-NN-M2-UP1-RNNN is a servo motor built for industry use. The motor interfaces with matching drive controllers, utilizing a built-in feedback device. This device, an optical encoder with EnDat 2.1 interface and 2048 signal periods, enables the drive controller to manage the motor’s speed, torque, and other parameters within 4096 shaft rotations. The motor features an electrically operated holding brake, triggered by a 24V DC signal, with a current draw of 0.5 Amps. The MSK050C-0600-NN-M2-UP1-RNNN motor boasts an improved run-out and concentricity, a DIN 6885-1 keyway shaft with a sealing ring, and rotatable power and feedback connectors. Designed for convection cooling, it operates best within an ambient temperature range of 0-40 degrees Celsius and an altitude range of 0-1000 meters, with performance decline occurring outside these parameters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Feedback Device: Optical Encoder with EnDat 2.1 interface (2048 signal periods)
  • Encoder Type: Multiturn (provides feedback within 4096 shaft rotations)
  • Holding Brake: Electric, 24 Volts DC signal, Current draw 0.5 Amps, Maximum connection/disconnection times (20/60 milliseconds)
  • Shaft Design: Includes keyway as per DIN 6885-1, Includes sealing ring
  • Connectors: Power and feedback connectors are rotatable
  • Cooling: Convection-cooled (requires good ventilation)
  • Ambient Temperature Range for Operation: 0 to 40 degrees Celsius (Output reduces by 20% at 55 degrees Celsius, Operation exceeding 55 degrees Celsius is not permitted)
  • Altitude Range: 0 to 1000 meters (Output derates by approximately 35% at 3000 meters)
