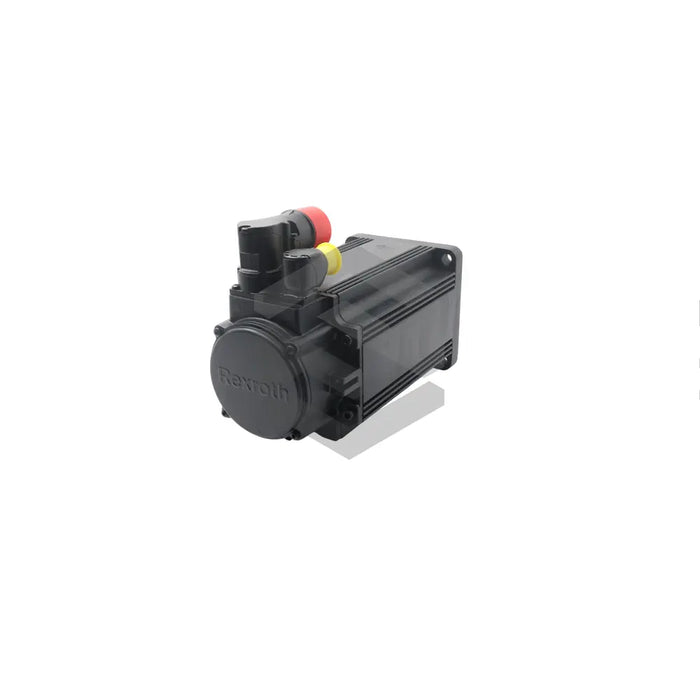

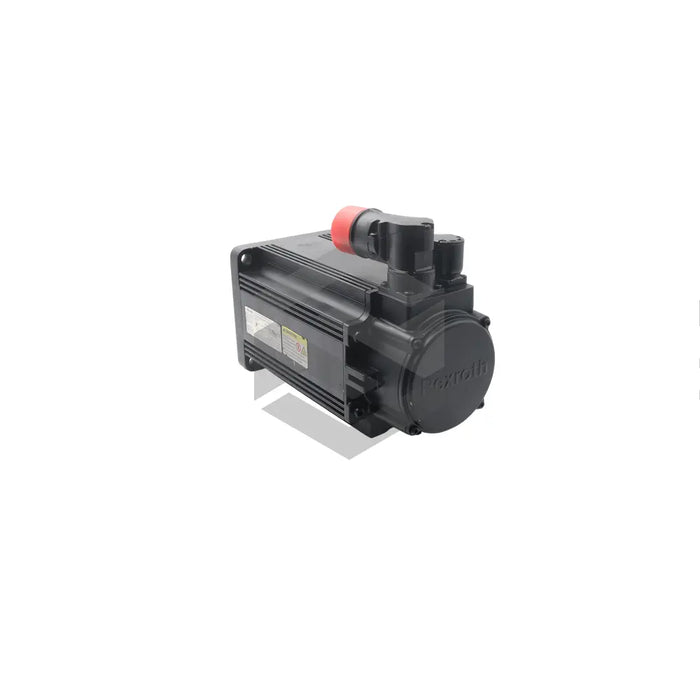

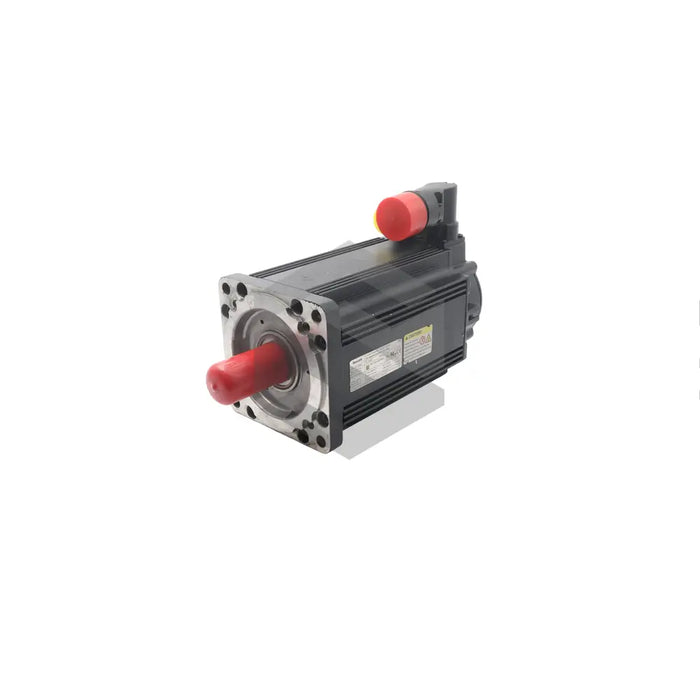

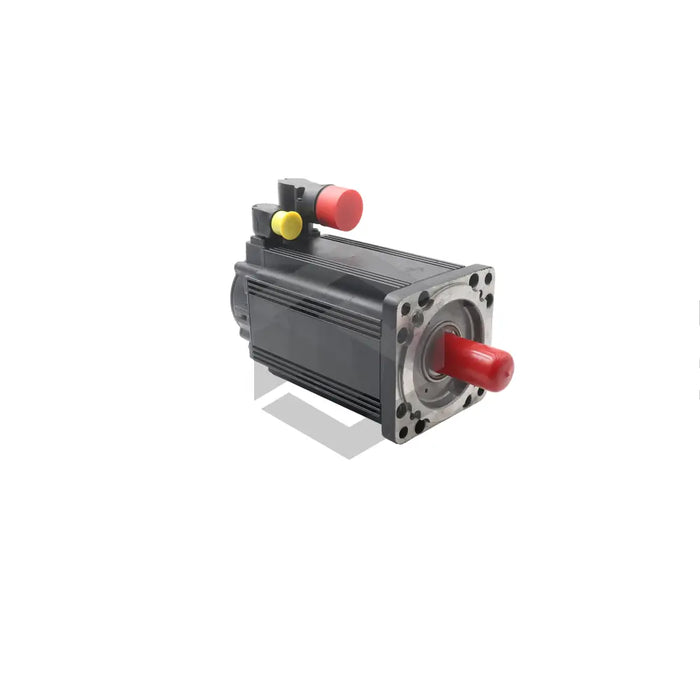

series image of MSK070D-0450-NN-M3-UG1-NNNN

MSK070D-0450-NN-M3-UG1-NNNN

by Bosch Rexroth Indramat
$3,295.69 - $3,295.69
$3,295.69
$3,295.69 - $3,295.69
$3,295.69
In Stock, Ships Today
The MSK070D-0450-NN-M3-UG1-NNNN synchronous servo motor, produced by Bosch Rexroth Indramat, offers 17.5 Nm and 20 Nm of continuous torque at 60K and 100K overtemperature, respectively, with the corresponding continuous currents at 16.6 Amps and 22 Amps. Its cooling methodology is facilitated via natural convection, with an optional forced air cooling mechanism that raises the continuous torque to 26.3 Nm and the current to 24.9 Amps. Its generous maximum values peak at 52.5 Nm torque and 49.8 Amps current, with 6 pole pairs and a 0.00375 kg m2 rotor moment of inertia. Other aspects include a peak speed of 6000 RPM, a noise level below 75 dB, and a combined motor and holding brake weight of 15.6 kg. Ideal running conditions are within 0-40 degrees Celsius and up to 1000 meters altitude. Its main shaft is fitted with a sealing ring, and it features a capacitive multiturn encoder, rotatable power and feedback connectors, a 23 Nm holding brake, and a dust-resistant IP65-rated standard design housing.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Servo Motor
  • Model: MSK070D-0450-NN-M3-UG1-NNNN
  • 60K Standstill Continuous Torque: 17.5 Nm
  • 60K Standstill Continuous Current: 16.6 Amps
  • 100K Standstill Continuous Torque: 20 Nm
  • 100K Standstill Continuous Current: 22 Amps
  • Forced Air Cooling Continuous Torque: 26.3 Nm
  • Forced Air Cooling Continuous Current: 24.9 Amps
  • Maximum Torque: 52.5 Nm
  • Maximum Current: 49.8 Amps
  • Number of Pole Pairs: 6
  • Rotor Moment of Inertia: 0.00375 kg m2
  • Thermal Time Constant: 23 Nm
  • Peak Speed: 6000 RPM
  • Operating Sound: 75 dB (max)
  • Weight (with holding brake): 15.6 kg
  • Ambient Temperature Range: 0 to 40 degrees Celsius
  • Altitude of Installation Site: 0 to 1000 meters
  • Shaft Type: Plain with sealing ring
  • Encoder Type: Capacitive multiturn, 16 signal periods
  • Connectors: Rotatable power and feedback
  • Holding Brake Torque: 23 Nm
  • Housing Design: Standard
  • Protection Class: IP65
