S image of MSK070E-0150-NN-M2-UP0-RNNN

MSK070E-0150-NN-M2-UP0-RNNN

by Bosch Rexroth Indramat
$8,615.41 - $11,503.80
$8,615.41
$8,615.41 - $11,503.80
$8,615.41

In Stock, Ships 1 - 3 Days

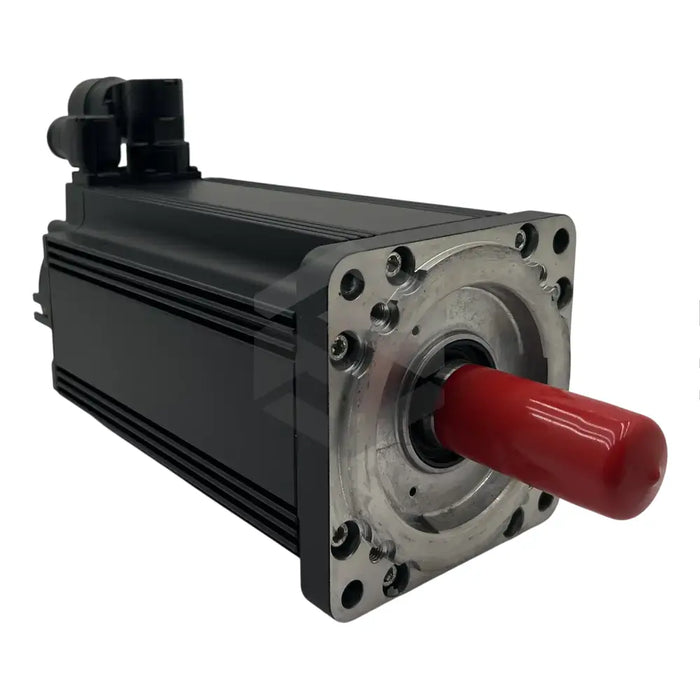

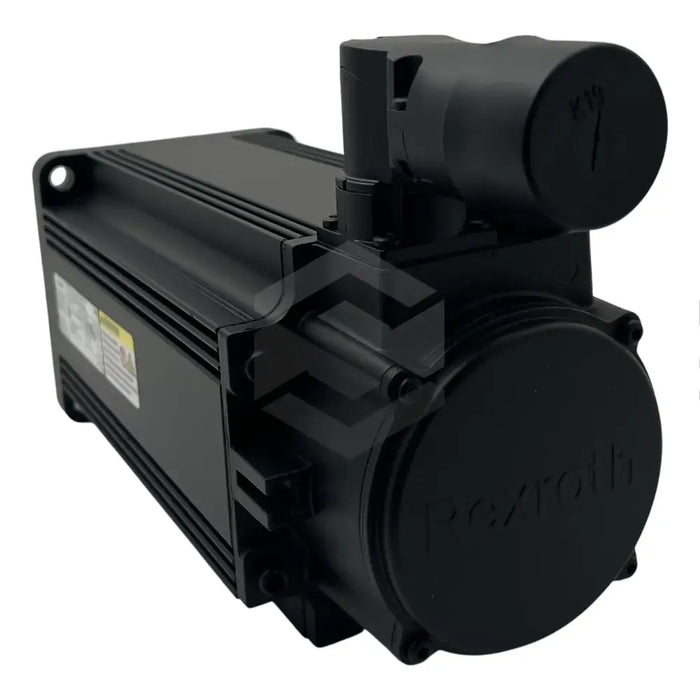

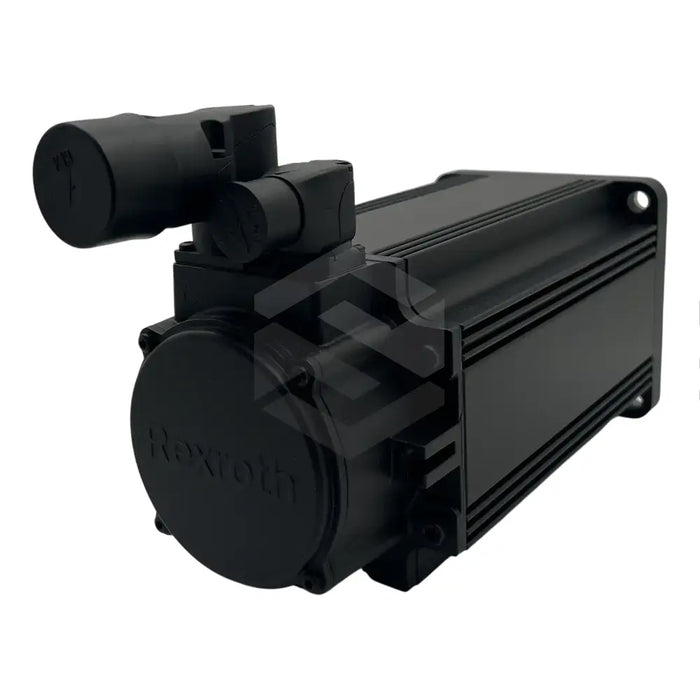

The product in question is a synchronous motor MSK070E-0150-NN-M2-UP0-RNNN, manufactured by Bosch Rexroth Indramat. This motor is capable of reaching a maximum of 2200 RPM and can generate a maximum torque of 70Nm, while consuming a maximum current of 25.6A. The motor excels in continuous performance, generating 25 Nm of torque with 7A of current, given a standstill temperature of 100K. The motor is designed to operate optimally between 0-40 degrees Celsius and should not be used in adverse conditions such as submerged environments, high temperatures or severe temperature fluctuations. The unit is equipped with a multiturn-absolute EnDat2.1 optical feedback encoder for precise speed and position control. It features a 240-degree rotational electrical plug and a shaft with keyways. The entire unit weighs 16.2 Kg and utilizes convective heat transfer for cooling. The motor should be transported and stored at a temperature range of -20 to +80 Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MSK070E-0150-NN-M2-UP0-RNNN

Max Rotation Speed

2200 RPM

Max Torque

70 Nm

Max Current

25.6 A

Continuous Torque At Standstill

25 Nm

Operational Current

7 A

Transportation Temperature

-20 to +80 degrees Celsius

Operation Temperature

0 to +40 degrees Celsius

Voltage Constant

242.4 V/1000min-1

Winding Resistance

3.10 ohms at 20 degrees Celsius

Ambient Norms Class

3K4

Motor Design

Shaft with keyways and a 240-degree rotational electrical plug

Weight

16.2 kg

Thermal Time Constant

32 min

Rotor Position Input

Multiturn-absolute EnDat2.1 optical feedback encoder

Winding Inductance

24.500 mH

Housing Design

Convective heat transfer
