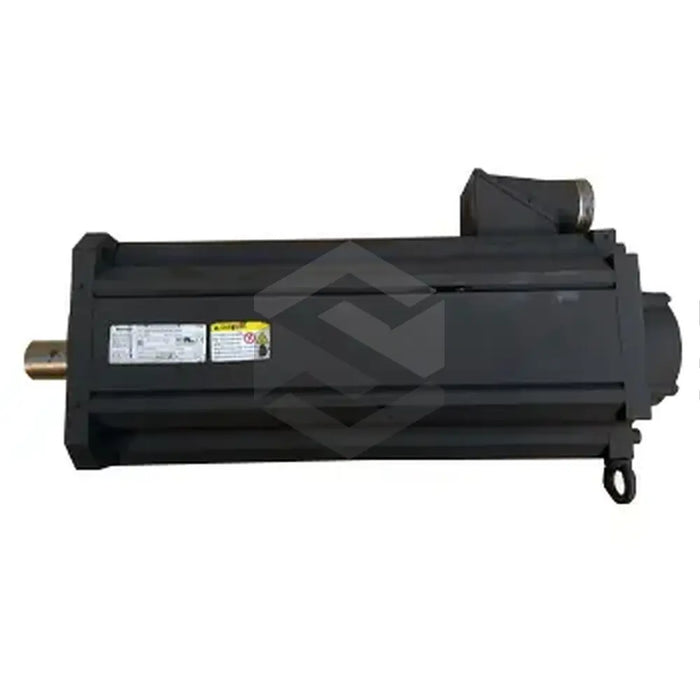

MSK101E-0300-NN-S3-FG0-NPNN
The MSK101E-0300-NN-S3-FG0-NPNN synchronous motor produced by Bosch Rexroth Indramat operates optimally at ambient temperatures of 0-40 degrees Celsius and altitudes of 0-1000 meters above sea level. Suboptimal conditions decrease motor performance, evidenced by a 20% reduction in output above +55 degrees Celsius and a 30% reduction beyond 3000 meters altitude. This motor, weighing 53.5 kg, features four pole pairs, a torque constant of 1.85 Nm, a rotor moment of inertia of 0.01380 kgm2, and runs at the noise level of less than 75 dB. For optimal longevity, environmental class 3K4 is advised. The motor is designed with a plain output shaft with a maximum rotation speed of 4600rpm. In addition, the MSK101E-0300-NN-S3-FG0-NPNN motor has a maximum torque and current of 231 Nm and 187.4 A, respectively, with a winding resistance of 0.11 ohms, a voltage constant of 113.8 V/1000min-1, and a discharge capacity of 16.7 nF.
