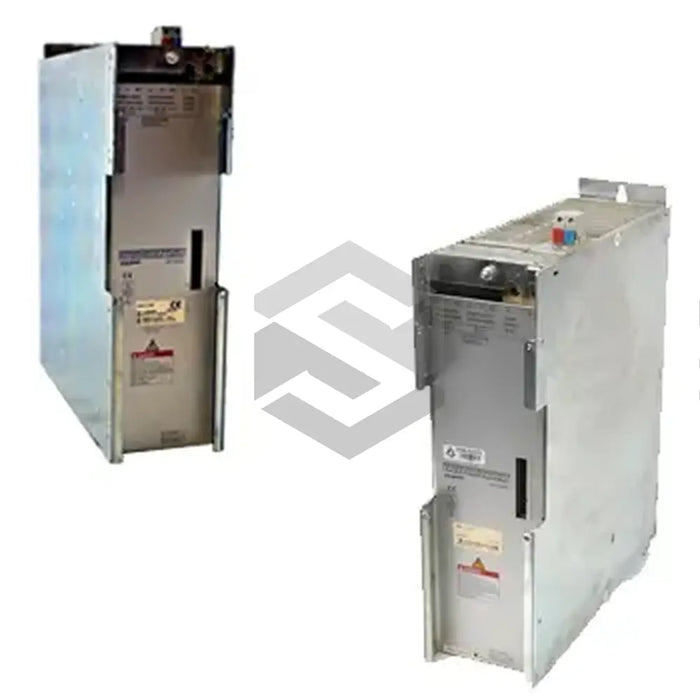

series image of NAM04.2-480-0650-NE-120

NAM04.2-480-0650-NE-120

by Bosch Rexroth Indramat
$4,676.00 - $4,676.00
$4,676.00
$4,676.00 - $4,676.00
$4,676.00
Available, Shipping Varies
The Bosch Rexroth Indramat NAM04.2-480-0650-NE-120 is a line conditioning module designed to supply power to drive systems. Having a nominal current rating of 650 A and an output voltage rating of 300 V, it is compatible with the manufacturer's KDV power supply modules. The module utilizes mains acquisition and includes an LED display for easy troubleshooting, ideal for operation in humid conditions. It has a reduced output when ambient operating conditions exceed its ratings. Working at an input voltage of 3 x 380 to 460 VAC and 50/60 Hz frequency, it's compatible with main and servo drives with a power output rating of up to 24 kW. The unit features a U1-V1-W1 input terminal and multiple monitoring functions. It can be connected to a HNL series input inverter choke but is not waterproof. Suitable for industrial use, the module should be used as intended in a control cabinet. It features an IP 10 protection class according to DIN EN 60529 specifications, and has a 1L+/2L+ choke terminal.
30 Day Warranty
Technical Specifications
  • Manufacturer : Bosch Rexroth Indramat
  • Product Name : NAM04.2-480-0650-NE-120 Bosch Rexroth line conditioning module
  • Nominal Current Rating : 650 A
  • Feature : Mains acquisition
  • Line Code : 4
  • Output Voltage Rating : 300 V
  • Function : Delivers the DC bus voltage to supply power to the drives in a drive system
  • Compatibility : Compatible with KDV power supply modules
  • Display : LED display
  • Special Feature : Supports operation under humid conditions
  • Input Voltage : Operates at an input voltage of 3 x 380 to 460 VAC
  • Frequency : 50/60 Hz
  • Mechanical Power Output : Compatible with main and servo drives that portray a continuous mechanical power output rating of up to 24 kW
  • Cable Type : Wired ribbon cable
  • Safety Note : Module must be cooled down after disconnecting from power supply
  • Input Terminal : U1-V1-W1 terminal
  • Monitoring Functions : Incorporated
  • Additional Compatibility : Can connect to input inverter choke of the HNL series
  • Usage Restrictions : Not for operation under water or outside a control cabinet
  • Protection Class : IP 10
  • Terminal Type : 1L+/2L+ choke terminal
  • Intended Use : Designed for industrial use.
