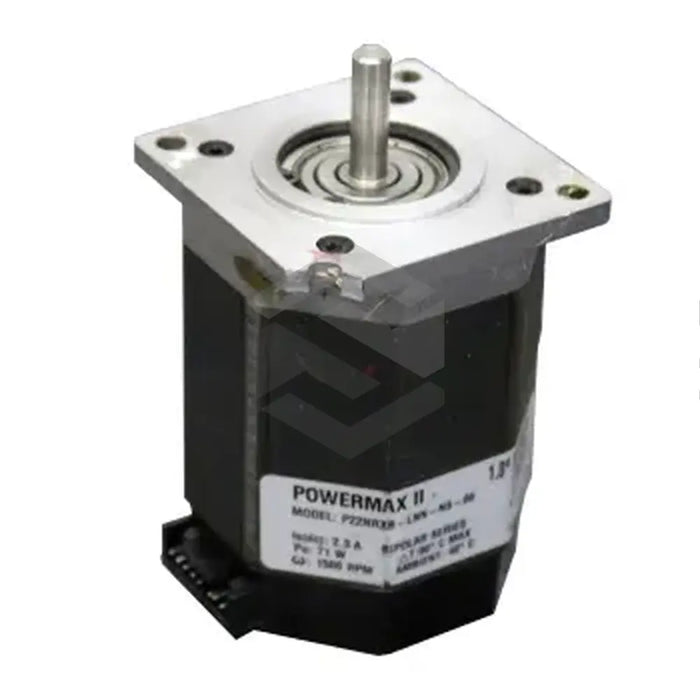

The P22NSXA-LDN-NS-02, a product of Pacific Scientific, is a compact yet powerful stepper motor which leads its class in torque-to-frame size ratio, and offers excellent thermal dissipation, thanks to its polymer encapsulated stator. Its enhanced features such as 1.39 Nm torque, 6.5 A rated current per winding, and over-sized 30 mm bearings, ensure longer fatigue life and a more significant number of load cycles. This model also offers a full step angle of 1.8 degrees and a shaft of 6.3 mm diameter. The cooling mechanism is optimized, and the motor boasts a low inertia rotor that enables high acceleration rates. Its sophisticated design includes a precisely ground rotor and a honed stator, ensuring a concentric air gap. The P22NSXA-LDN-NS-02 also carries compatibility with the Sigmax Technology, boosting the available torque and is CE approved, signifying its compliance with all necessary regulation and standards.
30 Day Warranty
Technical Specifications
  • Manufacturer: Pacific Scientific
  • Product Name: P22NSXA-LDN-NS-02 Stepper Motor
  • Size: NEMA 23
  • Torque: 1.39 Nm
  • Rated Current: 6.5 A per winding
  • Stator: Polymer encapsulated
  • Life: Increased fatigue life
  • Bearings: Oversized (30mm)
  • Step Angle: 1.8 degrees
  • Shaft Diameter: 6.3 mm
  • Certification: CE approved
  • Cooling System: Optimized housing design
  • Resistance: 0.42 ohm per winding
  • Inductance: 0.8 mH per winding
  • Rotor: Precise ground
  • Technology Compatibility: Smart Sigmax Technology
  • Rotor Option: Low Inertia.
