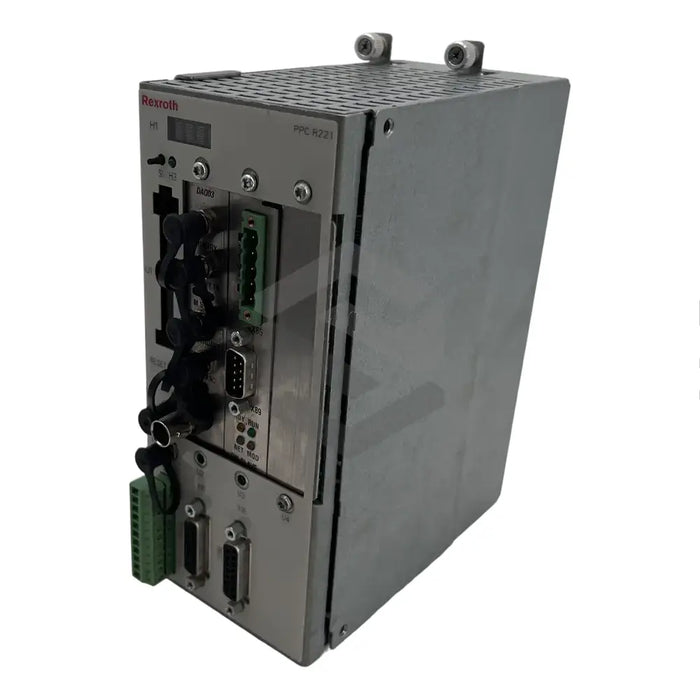

C image of PPC-R22.1N-T-Q2-V2-NN-FW | Main (Front Left)

PPC-R22.1N-T-Q2-V2-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PPC-R22.1N-T-Q2-V2-NN-FW by Bosch Rexroth Indramat is a stand-alone system designed for motion and logic control in industrial applications, especially fitting for robotics and multi-axis motion control. As part of the VisualMotion 10 product series, it utilizes VisualMotion GPP 10 firmware for integrated motion and logic control. This system is compatible with Reco 02 racks, EcoDrive 03 digital servo drives, and IndraDrive Diax 04 drives. Communication interfaces include a SERCOS interface for servo drives, two serial ports and an Ethernet port that doubles as a standard TCP/IP channel and an Ethernet/IP fieldbus slave interface. For security purposes, Bosch recommends isolating the network with a hardware-based firewall and router. Mechanical specs include a 2.87 lbs weight, dimensions of 184 x 8 x 165 mm, and an IP20 enclosure rating. The system operates at a maximum of 1.2 Amps and 24 Volts DC.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

PPC-R22.1N-T-Q2-V2-NN-FW

Product Type

Stand-alone motion and logic control system

Industrial Applications

Robotics and multi-axis motion control

Product Range

VisualMotion 10

System Compatibility

Reco 02 racks, EcoDrive 03 digital servo drives, IndraDrive Diax 04 drives

Communication Interfaces

SERCOS interface, 10/100 Mbps Ethernet interface with RJ-45 jack, two serial ports

Ethernet Port

Standard TCP/IP communication and as Ethernet/IP fieldbus slave interface

Security

Data transmitted over Ethernet is not encrypted, recommended to use a router and hardware firewall for protection

DeviceNet Slave Module

Installed

Supports


ARCNET

Lacks

Memory expansion module

Weight

2.87 pounds

Enclosure Dimension

184 x 8 x 165 millimeters

Enclosure Rating

IP20

Input Power Requirement

Maximum 1.2 Amps at 24 Volts DC.
