PS-33061-R

by Danaher
Original price $2,782.33 - Original price $2,782.33
Original price
$2,782.33
$2,782.33 - $2,782.33
Current price $2,782.33
Condition: Refurbished

In Stock, Ships 1 - 3 Days

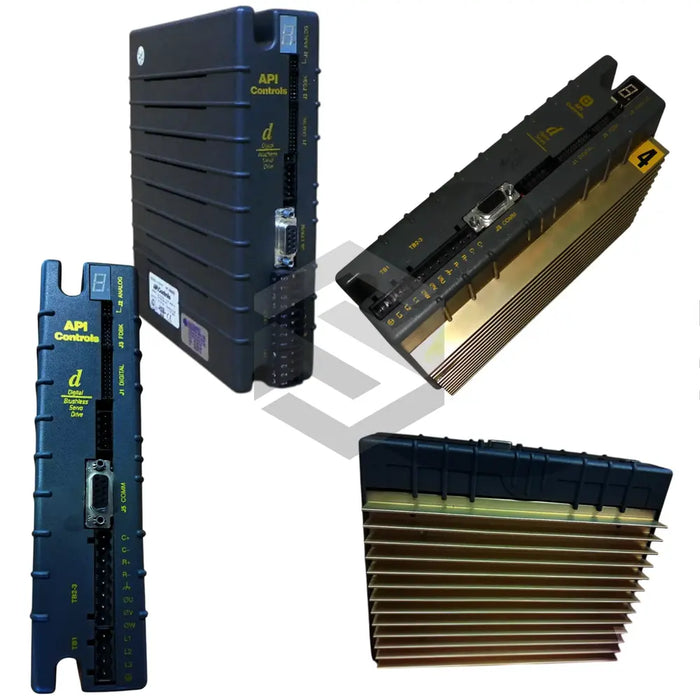

The PS-33061-R is a servo drive by Danaher in the API Servo Drives series. It accepts 230 VAC input at 6 A, delivers a 75 VAC bus voltage and supports brushless DC and 300 V induction motors. Integrated heatsink cooling, resolver feedback, and RS-232/422/485 interfaces enable precise multi-axis control.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Analog Inputs


Differential ±10 VDC for velocity, current, or custom

Command Formats


Step/Direction, Step-Up/Down, Quadrature, ±10 VDC analog

Communication Interfaces


RS-232/422/485, digital control up to 31 axes

Control Modes


Stored program and digital modes

Cooling & Heatsink


Integrated heatsink, supports forced air cooling

Digital I/O


26‑pin (J1), ENABLE/RESET inputs, 12 outputs

DSP & Processing


40‑bit floating point DSP for motion control

Feedback Device


Resolver, ratio 1.000, sensitivity ~262 mV/°

Hardware Signals


ENABLE, RESET, DRIVE_OK

High-Speed Inputs


2 inputs, 3.5–7 VDC for step/dir signals

Integration Features


Master/slave & spline/CAM motion profiles

Model Series


PS-33xxc (PS-3306c-R)

Motor Compatibility


Brushless DC, brushed DC, 300 V induction motors

Operating Voltage


Nominal 75 VAC bus voltage

Resolver Input Current


Max 58 mA

Resolver Input Voltage


7.5 V nominal

Resolver Phase Shift


~6° open-circuit

Software Support


APImate 2.0 programming/configuration

Tuning & Control


PID tuning with real-time adaptive load/inertia estimation
