R900020154

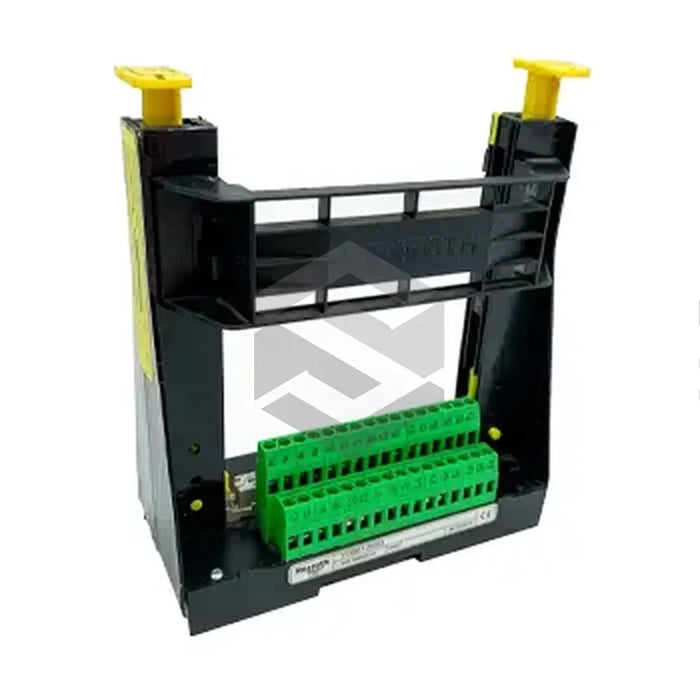

The R900020154 (VT 3002-1-2X-48F) is an electronics card holder developed by Bosch Rexroth Indramat. It offers a convenient and secure mounting solution for industrial electronics cards inside control cabinets or other industrial housing. This device simplifies the card installation process, requiring only the pushing down of yellow operating levers for card insertion and a quick unlock for removal. Wiring is facilitated by the removal of the connection web between the two guide rails. The device features a 48-pin (form F) socket connector for external correspondence, allowing even-numbered, rows d/b/z plug-in screw terminal connections with a maximum cross-section of 4 mm2.
The R900020154 (VT 3002-1-2X-48F) card holder can be attached via screws or hinged onto a hat rail with the inclusion of an extra adapter, possible even when vertically mounted. The device’s robust base determines a terminal maximum voltage of 48 Volts DC in accordance with VDE 0110C parameters, sustaining a current capacity of up to 4 Amps. The R900020154 (VT 3002-1-2X-48F) weighs 0.5 kg and measures 140 x 63 x 220 mm. Only trained and experienced technical professionals should handle, install or provide maintenance to the R900020154 (VT 3002-1-2X-48F) and its installed cards, with improper usage potentially leading to equipment damage.
