R911254883

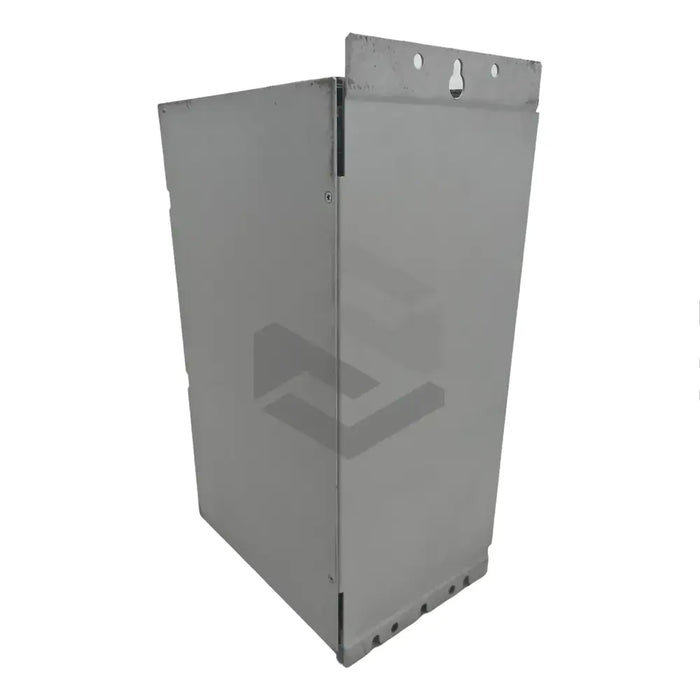

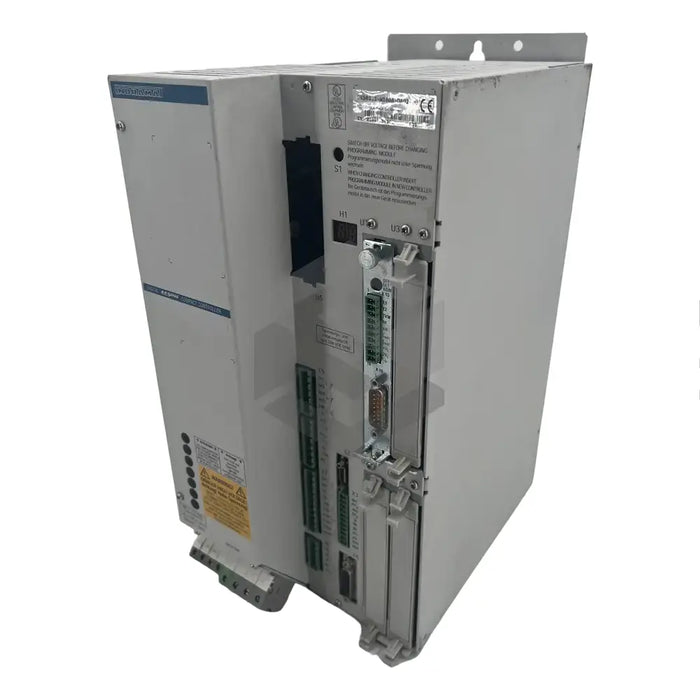

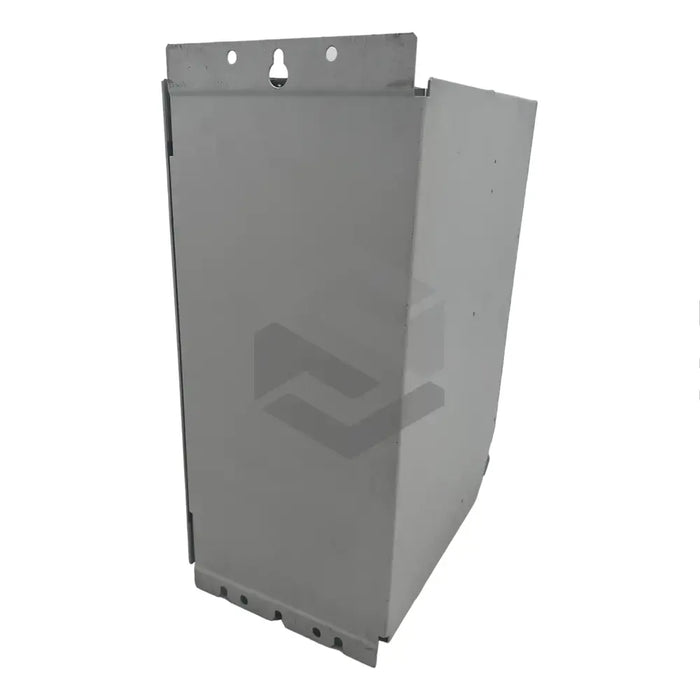

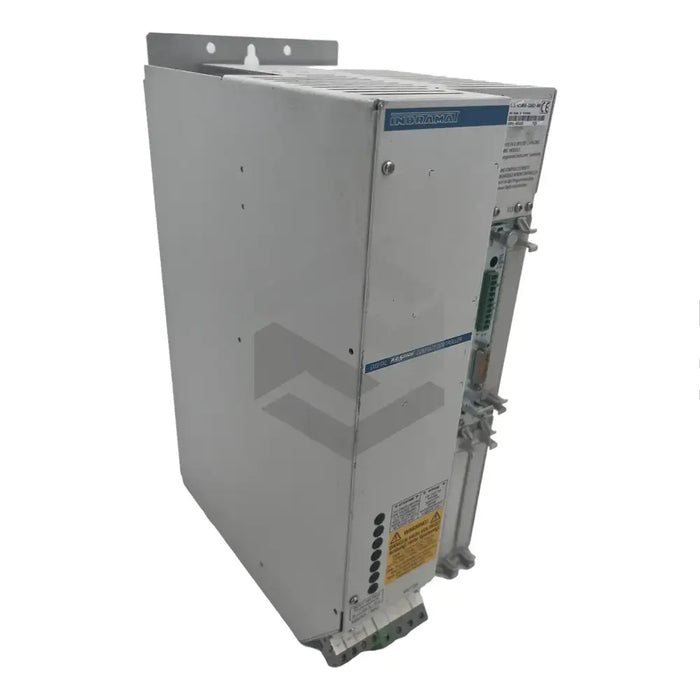

The R911254883 (DKS01.1-W100A-DA02-00), a product from Bosch Rexroth Indramat, is a Bosch servo drive created to control an AC MDD servo motor using a power and a motor feedback cable. Capable of running on a 3-phase and 1-phase AC voltage of 230 Volts, it comes with a protection system designed to automatically disconnect the unit from the power supply in emergency situations. Moreover, it has a built-in mechanism to reduce speed and halt operation if an issue arises in the electronic circuit systems.
For enhanced durability and safety, the unit has an inrush current limiting feature, which extends the life of a fuse or circuit-breaker. It showcases easily accessible screw-on terminals for clear cable connections, a display screen for troubleshooting and diagnostics, and an integrated system for controlling the motor's holding brake. This adaptable device can be matched to the specific requirements of a task through additional plug-in modules. Heat is dissipated within the drive body to prevent overheating. Operating on 100A of current and weighing 11kg, this unit functions optimally within a -30 to 85-degree Celsius environment.
30 Day Warranty
Technical Specifications
