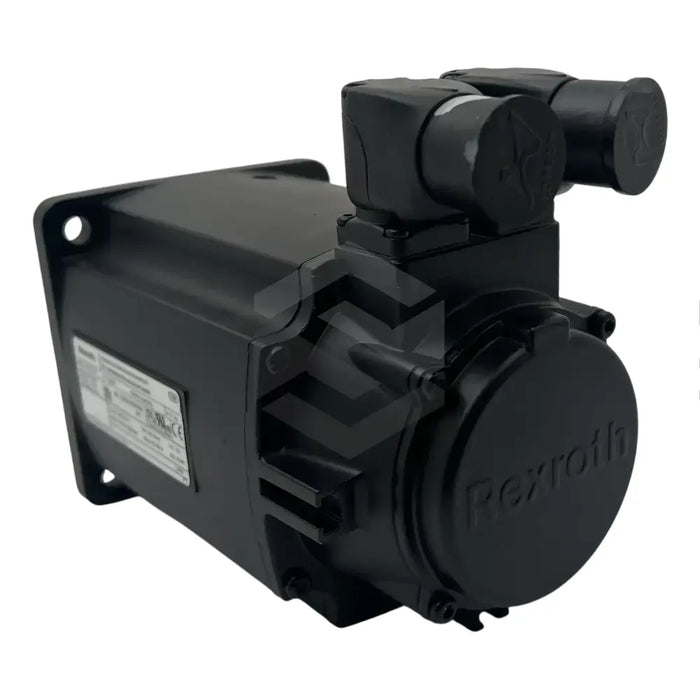

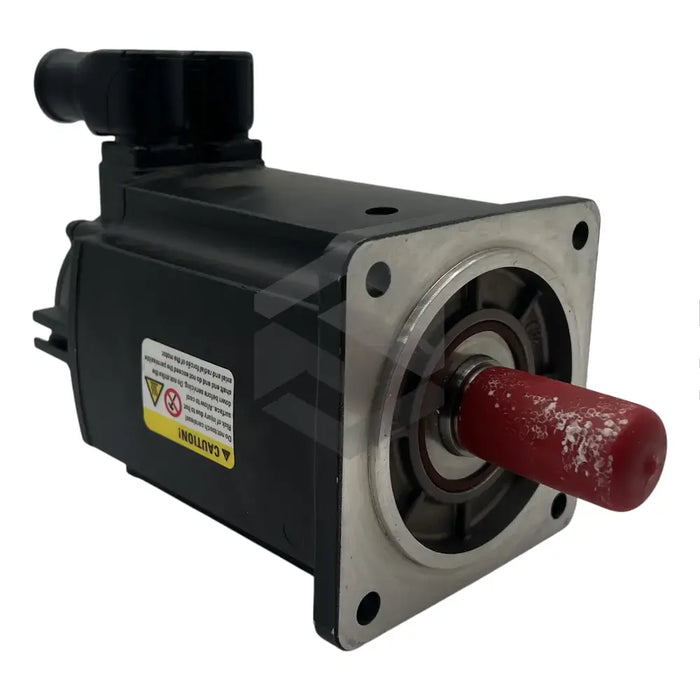

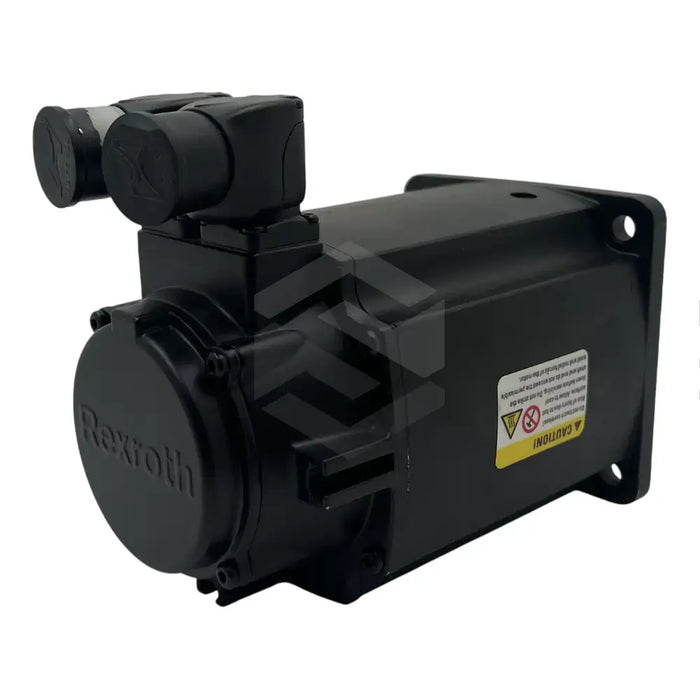

R911307211
The R911307211 (MSK060B-0300-NN-S1-UP1-NNNN), devised by Bosch Rexroth Indramat - renowned for cost-effective and energy-saving commercial automation merchandise, is chiefly recognized for its frequency converters, controllers, and servo motors. The R911307211 (MSK060B-0300-NN-S1-UP1-NNNN) is a highly efficacious model of a synchronous servo motor. It features a drive type shaft with keyways sporting a 24mm diameter, satisfying the DIN 6885-1 standards. Additionally, it includes a shaft sealing ring and is equipped with a holding brake, an electric release, and is capable of 4900 rpm. This model comes with a singleturn hiperface optical encoder with 128 increments and a 240-degree rotatable electric plug connection. Its thermal specs culminate in a peak operating torque of 24Nm, while the current maxes out at 19.2A. With four polar pairs, a 2.1nF discharge capacity, and a 4-minute thermal time constant, this device is capable of functioning effectively between 0 to +40 degrees Celsius.
The R911307211 (MSK060B-0300-NN-S1-UP1-NNNN) model holds CE, EAC, RoHS, RoHS China, UL, and CSA certifications, signifying its superior manufacturing standards. The 5.7kg device measures 156.5mm in height, 116mm in width, and 231mm in length. The model is IP65 rated under IEC 60529 and is also recognized for its DIN EN 60034-1 rating of 155. Its cooling system, exclusively available for selected sizes, ensures prime functionality.
30 Day Warranty
Technical Specifications
