R911317591

Original price $14,345.10 - Original price $14,345.10
Original price
$14,345.10
$14,345.10 - $14,345.10
Current price $14,345.10
In Stock, Ships Today

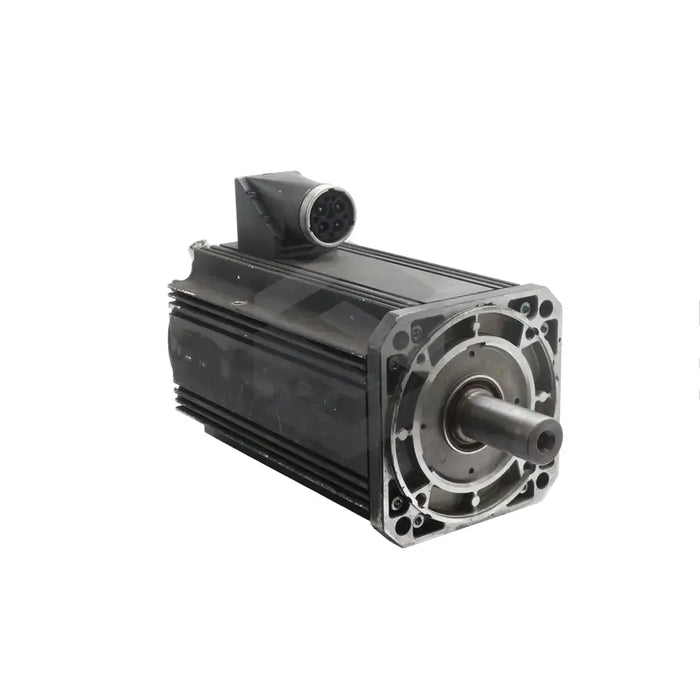

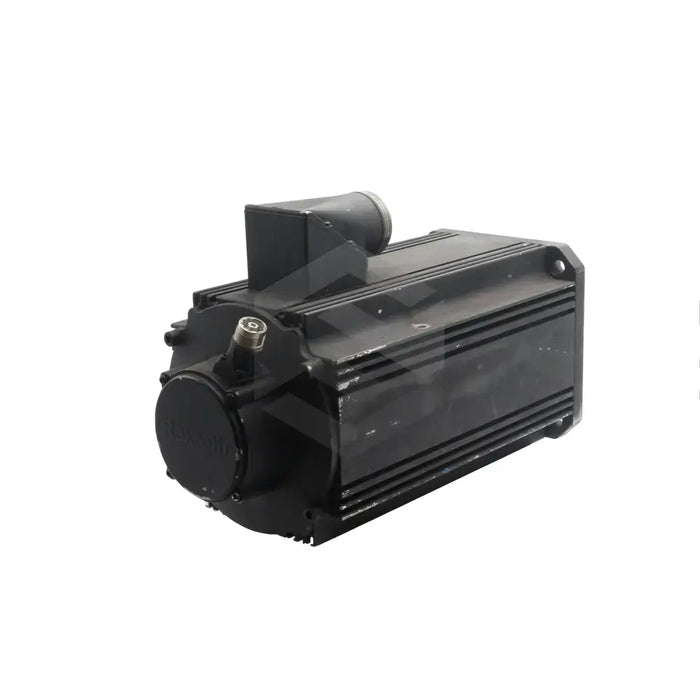

Introducing the R911317591 (MSK101D-0300-NN-M1-AP2-NNNN) Servo Motor: a high-performing, energy-saving device by Bosch Rexroth Indramat, a reputable company renowned for its quality motion control systems. This product is the latest servo motor with built-in feedback mechanism, distinguished by its durability and superior performance. Boasting four pole pairs, this device delivers continuous torque of 160 Nm at peak operation, fueled by a current consumption rate of 137.7 A. The R911317591 (MSK101D-0300-NN-M1-AP2-NNNN) is designed to weather tough climatic conditions, and withstand exposure to coolants, water, dust, and dirt, thanks to its IP65 protective housing. It can function optimally under an ambient temperature range of 0 to 40 degrees Celsius whilst remaining safe and productive at altitudes up to 1000 meters above sea level. Notable features include a keyway-type output shaft, allowing it to operate at a maximum speed of 4600 RPM, and class F insulation for protection against environmental hazards. Additionally, it houses an electrically-released holding brake generating 70 Nm of torque and employs a sealing ring to isolate the output shaft from liquid and solid particles. Uniquely, cooling is achieved through natural convection, promoting longevity of the motor. With its standard size and design, the R911317591 (MSK101D-0300-NN-M1-AP2-NNNN) ensures smooth installation and is shipped worldwide.
30 Day Warranty
Technical Specifications
  • Model: MSK101D-0300-NN-M1-AP2-NNNN
  • Shaft type: Output shaft with keyway
  • Radial bearing type: High quality.
  • Output shaft sealing: Sealed with a ring
  • Ambient operating temperature: 0 to 40 degrees Celsius
