R911320025

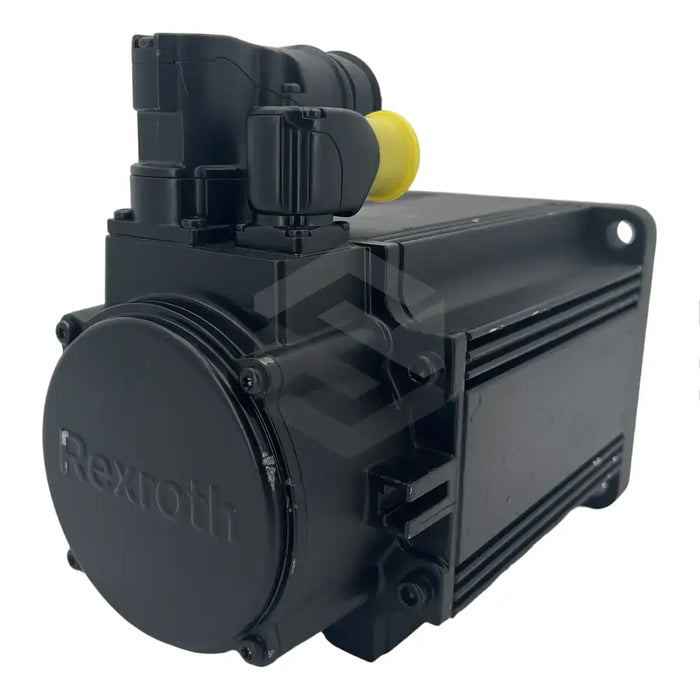

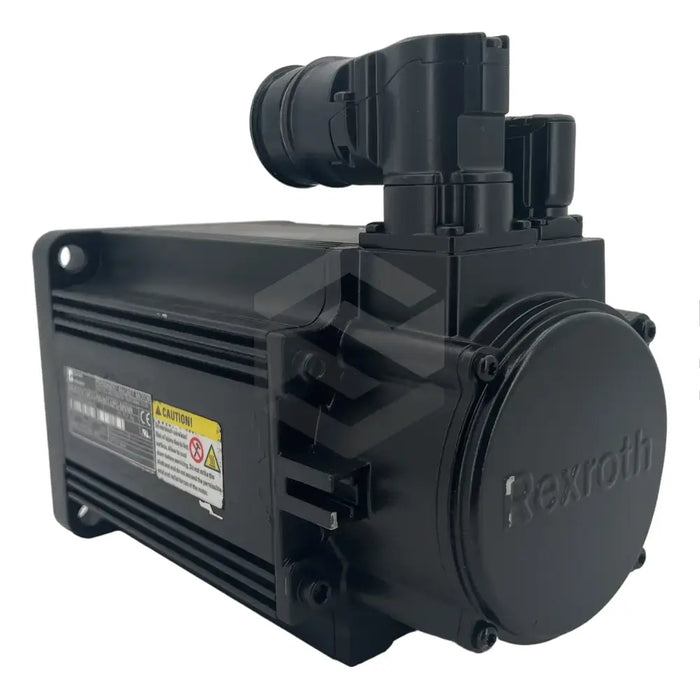

The Bosch Rexroth Indramat R911320025 (MSK070C-0300-NN-S2-UP0-RNNN) is a robust, synchronous motor from the IndraDyn S MSK070 series. Engineered for heavy-duty applications, it has been crafted to serve as a rotary main and a servo drive motor across a variety of fields. Renowned for its high torque density, this motor boasts a compact design and can deliver a maximum torque of up to 33Nm. Its maximum speed is rated at 5,500 revolutions per minute. The R911320025 (MSK070C-0300-NN-S2-UP0-RNNN) features a 240° rotatable plug for easy adjustments.

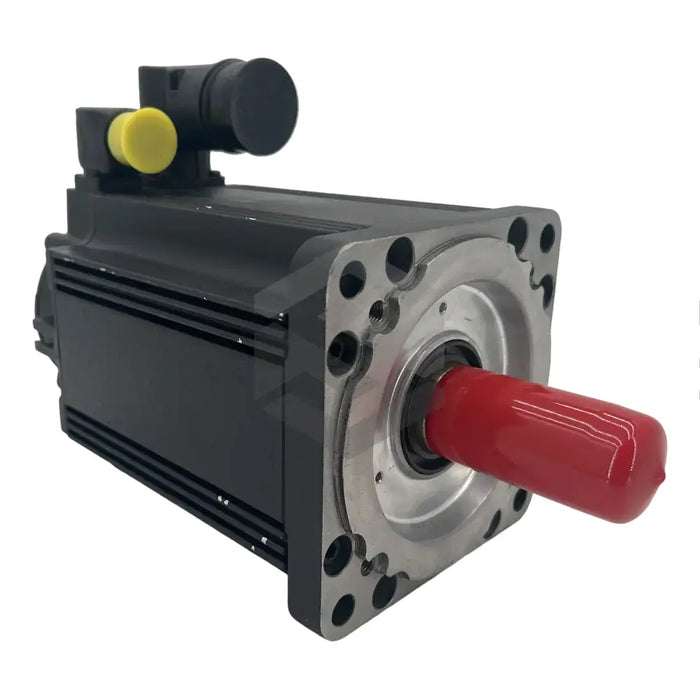

The motor incorporates an optical encoder, Singleturn EnDat 2.1, with 2048 increments for precise position storage within one mechanical rotation, offering a system accuracy of +/- 20 angular seconds. It has an output shaft equipped with a keyway built to DIN 6885-1 standards and a sealing ring, capable of tolerating shaft extension runout and axial runout per DIN 42955 norms. The R911320025 (MSK070C-0300-NN-S2-UP0-RNNN) is engineered to operate in ambient temperatures of 0°C to 40°C with a relative air humidity of 5% to 95%. It’s rated IP 65, ensuring protection against dust and water jets. Lastly, its black epoxy resin coating offers unparalleled chemical resistance, safeguarding against a diverse range of substances, including diluted acids, mineral oils, seawater, and sewage.
