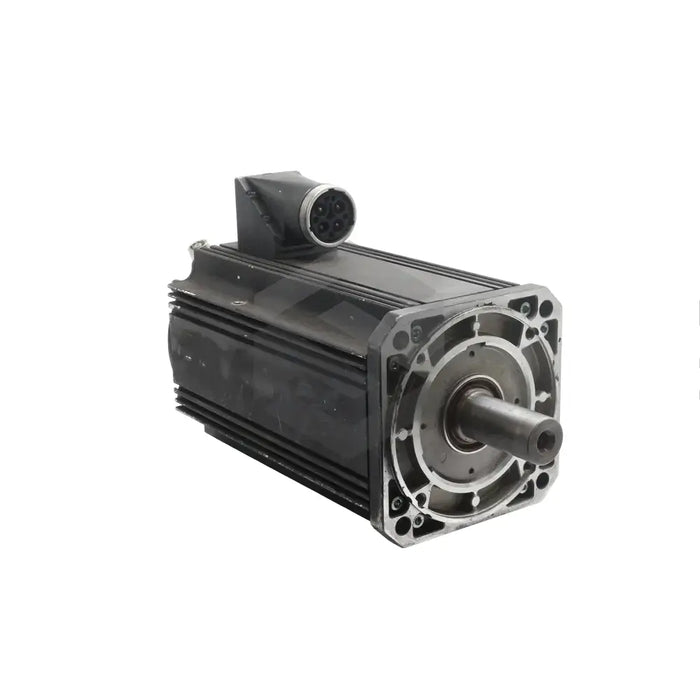

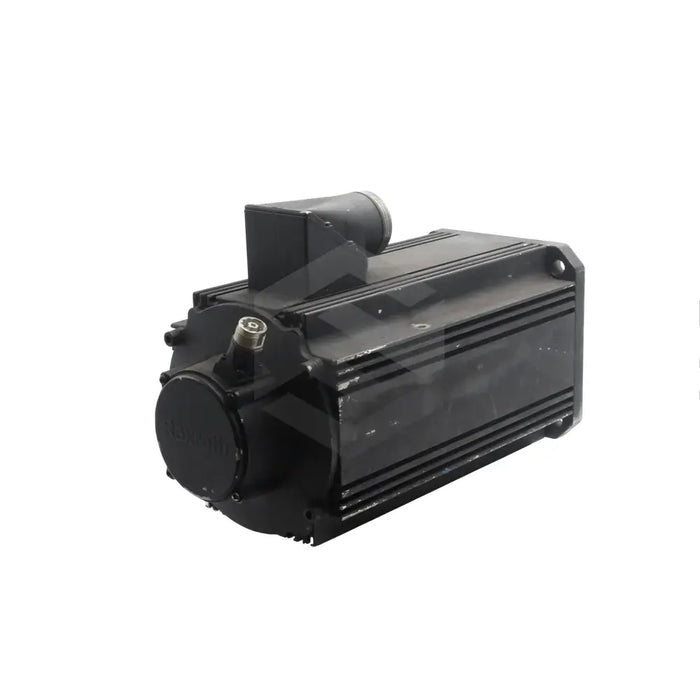

series image of R911344795

R911344795

by Bosch Rexroth Indramat
$15,592.50 - $15,592.50
$15,592.50
$15,592.50 - $15,592.50
$15,592.50
Available, Shipping Varies
The R911344795 (MSK101D-0300-NN-M2-AP2-RNNN) model, developed by Bosch Rexroth Indramat, belongs to their wide array of top-tier products like synchronous motors, ironless linear motors, frequency converters, servo drives, and digital axis controllers. This specific model comes equipped with an absolute multi-turn EnDat2.1 encoder and emits sound pressure of up to 75 dB. It has an IP65 protection certification, indicating its high resistance to dust and water, and insulation class of 155. The synchronous motor, weighing 40 kilograms, outputs a constant torque of 57 Nm at 100K using at least 34.9 A of continuous current. Specified for vibrating purposes, this needs to be set up correctly to minimize shaking. R911344795 (MSK101D-0300-NN-M2-AP2-RNNN)'s operating temperature range is between -20 and +80 degrees Celsius, and it needs expert professional installation. The R911344795 (MSK101D-0300-NN-M2-AP2-RNNN) synchronous motor boasts an embedded holding brake that weighs 3.8 kilograms, and needs a nominal 1.29 amp current, along with an output shaft with keyways. The brake's engagement and disengagement intervals are 53 and 97 milliseconds, respectively. The motor, which contains four polar pairs, requires a thermal time constant of 100 minutes for cooling when using surface cooling.
30 Day Warranty
Technical Specifications

  • Insulation Value:     Class 155

  • Output Shaft:     With keyways

  • Maximum Torque:     160 Nm

  • Transportation Temperature between:     -20 and +80 degrees Celsius

  • Housing Power Connector:     A side
