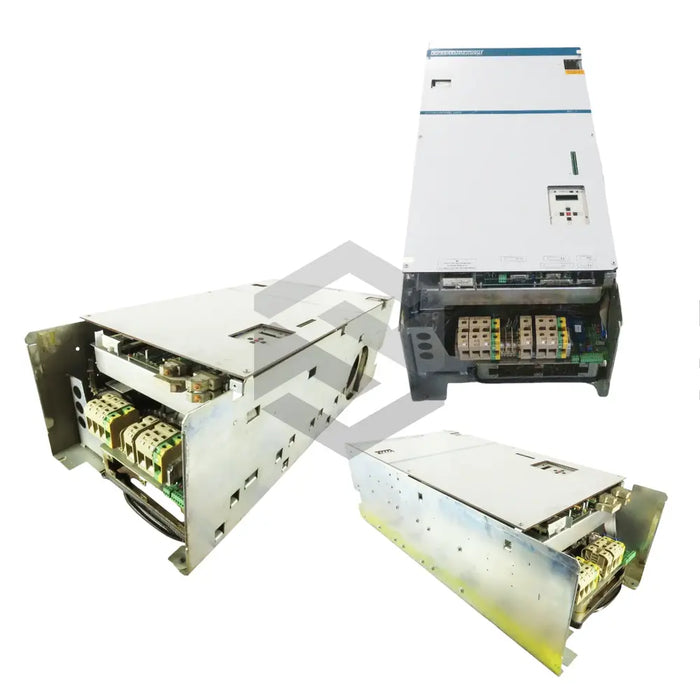

series image of a RAC 2.3-250-380-A00-W1

RAC 2.3-250-380-A00-W1

by Bosch Rexroth Indramat
Request a quote
The RAC 2.3-250-380-A00-W1 by Bosch Rexroth Indramat is a spindle drive controller created primarily for managing Indramat 2AD asynchronous spindle motors and, frameless spindle motors. It is flexible in usage, operating as a main spindle drive or c-axis drive, with the capability to switch between modes. The drive controller is highly precise thanks to an accuracy position control loop, and functions within an optimal temperature range of 5 to 45 degrees Celsius. Key features include the e-stop function, spindle positioning, compensation functions, drive error reactions, and integrated safety technology. Its protection class is IP 24, and it utilizes an analog speed command interface, with no need for additional bleeders or other interfaces. The controller is designed for a three-phase main supply system, containing built-in e-stop shut-down circuit, and uses both internal and external air for cooling. To ensure smooth operation, a AS programming module is recommended.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Spindle Drive Controller
  • Model: RAC 2.3-250-380-A00-W1
  • Main Uses: Controlling Indramat 2AD Asynchronous Spindle Motors and Frameless Spindle Motors
  • Operating Modes: Switchable
  • Position Control Accuracy: High
  • Design: 3
  • Inside Cabinet Maximum Air Temperature: 55 Degrees Celsius
  • Main Functions: e-stop Function, Spindle Positioning, Compensation Functions, Drive Error Reactions, and Integrated Safety Technology
  • Command Interface: Analog Speed with Voltage Range +10 to -10
  • Additional Features: None
  • Cooling Method: Fan (IP 24 Rating)
  • Power regeneration Capability: Available
  • Compatible Motors: 2AD132 to 2AD225 Size Range
  • Ambient Operating Temperature Range: 5 to 45 Degrees Celsius
  • Series: 2
  • Connection: Direct to Grounded Three-Phase Main Supply System
  • Built-in Shut-Down Circuit: e-stop
  • Cooling Method: Inside Air and Outside Air
  • Rated Voltage and Type Current: Three-Phase and 250 Amps
  • Configuration Tool: AS Programming Module
  • Application: Precision Motion Control.
