series image of a RZR01.1-RD52-0880-S-M-FW

RZR01.1-RD52-0880-S-M-FW

by Bosch Rexroth Indramat
Request a quote

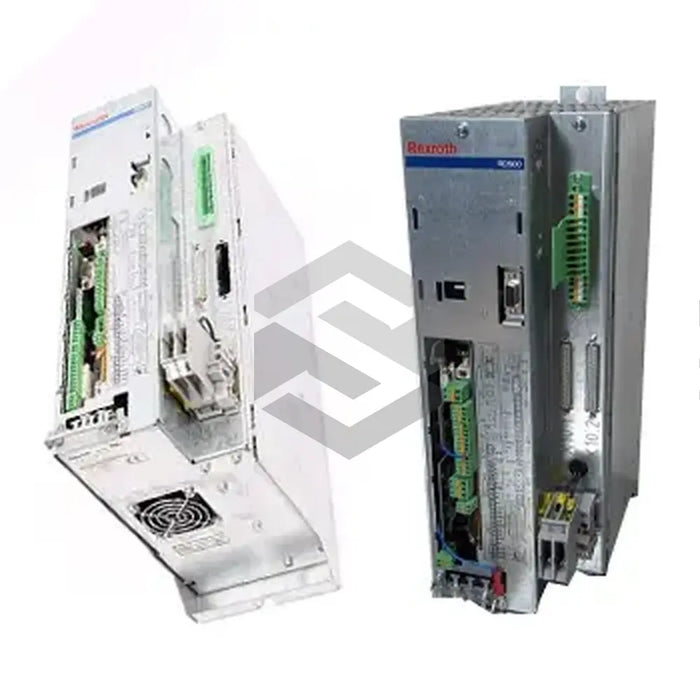

Bosch Rexroth Indramat's RZR01.1-RD52-0880-S-M-FW is a high-quality inverter controller equipped with a motor temperature control sensor for overvoltage protection. Made to operate at a rated input voltage of 24V with a consumption rate of 12A during continuous use, it provides a maximum current of 880A for the HPS module. The controller, made with a single circuit technique, is used with the RD52 vector control converter module. It functions in environmental class 3K3 with a temperature range of 0 to +40°C, and up to a humidity level of 90% but it is not resistant to liquids. Weighing 6.5kg, it operates on natural convection for cooling, and requires installing in an oil and dust-free control cabinet.
30 Day Warranty
Technical Specifications
  • Product Manufacturer: Bosch Rexroth Indramat
  • Model Number: RZR01.1-RD52-0880-S-M-FW
  • Application: Motor Inverter, Temperature Control Sensor
  • Rated Input Voltage: 24 V (±5%)
  • Rated Current: 12 A
  • Overvoltage Protection: Yes
  • Maximum Current for HPS Module: 880 A
  • Circuit Technique: Single
  • Compatibility: RD52 Vector Control Converter Module
  • Environmental Class: 3K3
  • Allowable Temperature Range: 0 to +40 degree Celsius
  • Humidity Conditions: Up to 90%
  • Protection Against Liquids: No
  • Professional Handling Required: Yes
  • Net Weight: 6.5 kg
  • Mounting Environment: Free from Oil and Dust
  • Cooling Method: Natural Convection
