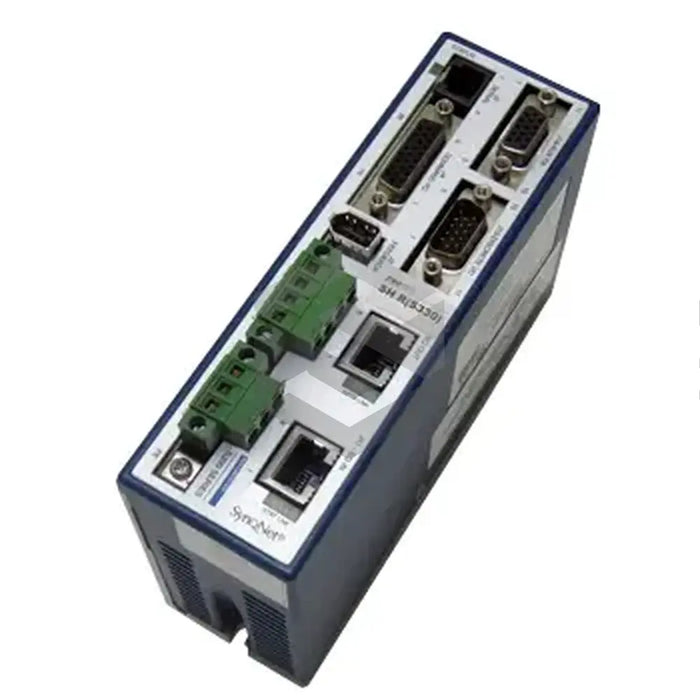

S20330-SRS

Original price $1,404.00 - Original price $1,404.00
Original price
$1,404.00
$1,404.00 - $1,404.00
Current price $1,404.00
Available, Shipping Varies
Request a quote
Kollmorgen's entry into the automation industry revolutionized applications such as metalworking, intelligent hydraulics, precision three-dimensional cutting, and metal additive manufacturing. The S20330-SRS servo drive, part of the S200 series, offers threefold diagnostic control at the rated continuous current every five seconds, allowing for greater monitoring. Its power output ranges from a minimum of 300 Watts to a maximum of 50,000 Watts during continuous duty operation. With enhanced peak performance, the S20330-SRS is perfect for applications requiring smaller servo drives. It has a SynqNet option card for seamless connectivity to the SynqNet network. The drive has an input voltage of 20 to 90 Volts DC and gives a peak output current of 9.0 ARMS at temperatures between 0.0 and 50.0 degrees Celsius. Notably, the S20330-SRS is among the first fully digital drives with a velocity loop bandwidth of up to 800 Hertz, offering exceptional system throughput while maintaining a compact package size.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Type: Servo Drive
  • Product Series: S200
  • Model Number: S20330-SRS
  • Option Card: SynqNet
  • Network Connection: RJ45
  • Operating Voltage: 20 to 90 Volts DC
  • Minimum Peak Current Time: 3.0 seconds
  • Peak Output Current: 9.0 ARMS
  • Ambient Temperature: 0.0 to 50.0 degrees Celsius
  • Velocity Loop Bandwidth: up to 800 Hertz
  • Feedback Support: SFD/Halls
