series image of S62000

S62000

by Danaher
Request a quote

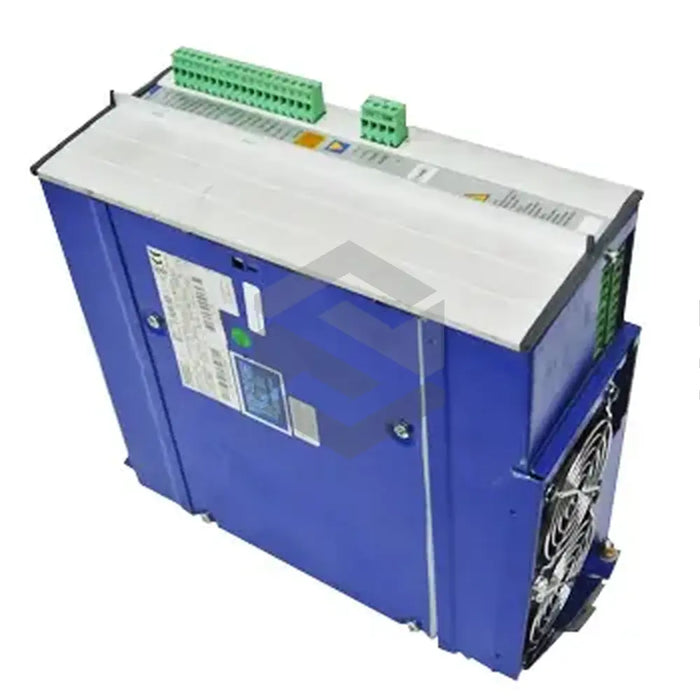

The S62000, a Digital Servo Amplifier, is a prime offering from the trusted brand Danaher's Kollmorgen Corp. As part of the extensive S600 series, the S62000 maintains the high standards associated with its family. Boasting a rated installed load of 14 kVA for S1 operation, and a standard output of 20 Amps, this robust amplifier is distinguished by its weight of 7.5 kg and larger form factor measuring 275 mm in length, 120 mm in width, and 65 mm in depth. It features a dissipation at rated current of 200W, inclusive of power supply losses. Technically speaking, the S62000 has an output current rating of 20.0A rms (+-3%), peaking at 40.0A rms (+-3%), and operates within a DC bus voltage range of 290 to 675 Volts. Additionally, it offers overvoltage protection, initialised at 450 Volts, and inductance ratings at maximum and minimum loads of 12 mH and 2 mH, respectively.
30 Day Warranty
Technical Specifications
  • Manufacturer: Danaher
  • Product Line: Kollmorgen Corp
  • Series: S600
  • Product Model: S62000 SERVOSTAR 620 Digital Servo Amplifier
  • Rated Installed Load: 14 kVA for S1 operation
  • Output Range: 20 Amps
  • Weight: 7.5 Kg
  • Dimensions: L=275 mm, W = 120 mm, D = 65 mm
  • Dissipation at Rated Current: 200W (includes power supply losses)
  • Output Current Rating: 20.0A rms (+-3%)
  • Peak Output Current Rating: 40.0A rms (+-3%)
  • DC Bus Voltage: 290 Volts to 675 Volts
  • On-board Overvoltage Protection: 450 Volts
  • Inductance Rating: 12 mH and 2 mH at max and min load.
