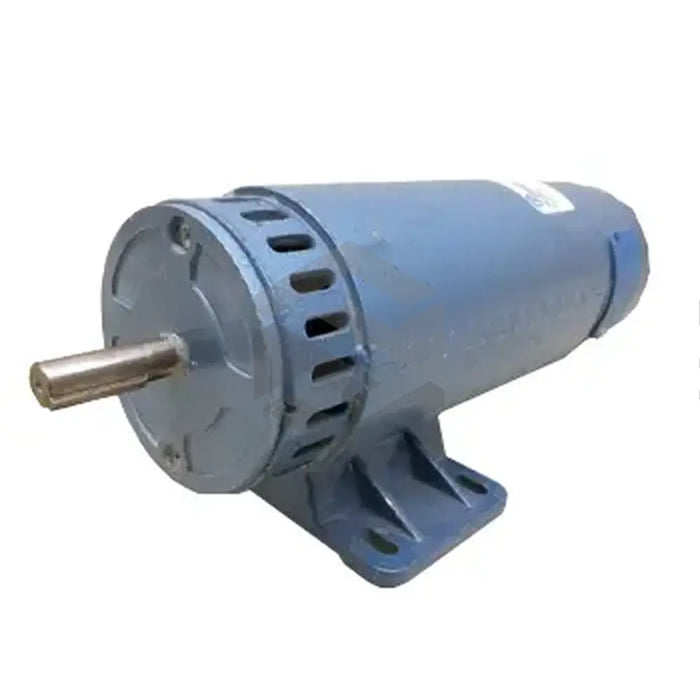

P image of SR3658-2255-7-56B

SR3658-2255-7-56B

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Kollmorgen SR3658-2255-7-56B is a DC motor from the SR series, prized for its efficiency, compact design, and its light weight thanks to permanent magnets. Operating at a speed of 1,800 RPM with a 1HP power rating, the motor has a 4.5A current rating and 180VDC voltage rating. Designed in a 56B type NEMA frame size enclosure, it is suited for versatile use across sectors like robotics, pharmaceuticals, oil & gas, and packaging among others. Possessing high performance and quality, the motor's applications range from laser eye surgery to Oil & Gas drilling. The patented anti-cogging magnets ensure smooth low-speed operations while other features include dynamic braking and high overcurrent capacity. The motor, UL recognized, CSA certified and CE marked, is constructed with a durable non-vented NEMA C face TENV configuration, a fused commutator, sealed bearings and a polyester impregnated armature. Other notable attributes include constant force brush springs and field-replaceable brushes.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

SR3658-2255-7-56B

Manufacturer

Kollmorgen

Product Line

SR Series

Motor Type

Continuous Duty DC motor

Rating

SCR

Operating Speed

1800 RPM

Power Rating

1HP

Current Rating

4.5A

Voltage Rating

180VDC

Frame Size

56B NEMA

Use Case

Robotics, Pharmaceuticals, Oil & Gas, Printing, Packaging, Converting etc

Applications

Space, Submarines, Surgical robots, Artificial Hearts, O&G Drilling etc

Features

Highly Efficient, Light weight, Compact, Dynamic braking, Anti-Cogging magnets, High Overcurrent Capacity

Construction

Rugged

Insulation Class

Class H

Certifications

UL Recognized, CSA Certified, CE Marked

Configuration

NEMA C face TENV non-vented

Commutator Type

Fused

Bearings

Standard large sealed

Armature Type

Polyester impregnated

Additional Features

Field-replaceable brushes, Constant force brush springs, Removable base
