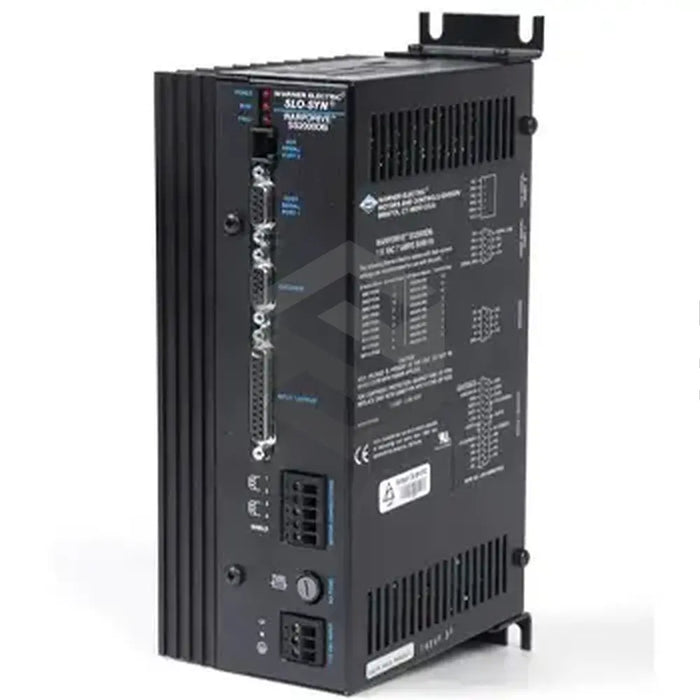

SS2000D6i

Request a quote
The Kollmorgen SS2000D6i is a specialized motor controller and drive system, with a power input rating of 120 volts AC, able to tolerate a ±10% voltage fluctuation. Featuring an upper limit motor phase current of 6 amps and short-circuit protection, it ensures safety and reliability. Equipped with 8 inputs and 4 outputs, it supports an optical isolation I/O and offers a user-friendly windows-based programming utility. With a programming language resembling BASIC, it presents two RS-232 / RS-485 serial ports and delivers smooth operation at lower motor speeds. Suitable for NEMA 23, NEMA 34, and NEMA 42 motors, it utilizes digital microstepping current control for optimal motor performance. Its dimensions are 262mm (H) x 93mm (W) x 147mm (D), with a weight of 3.5 kg. Operable within 0 to 50°C and storable from -40 to 75°C, the device should be handled by trained personnel.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Type: Motor Controller and Drive
  • Input Rating: 120 Volts AC
  • Voltage Tolerance: ±10%
  • Max Motor Phase Current: 6 Amps
  • Short-Circuit Protection: Yes
  • Isolated I/O: 8 inputs and 4 outputs
  • Software Development Utility: Windows based
  • Programming Language: Similar to BASIC
  • Microprocessor: 16-bit
  • Encoder Input: For closed loop operation
  • BCD Interface: With separate connector
  • Serial Ports: Two RS-232 / RS-485, up to 38 kbaud
  • Integrated AC Line Filter: Yes
  • Motor Size Compatibility: NEMA 23, NEMA 34, NEMA 42
  • Control Technology: Digital microstepping current control
  • Dimensions: 262mm (Height) x 93mm (Width) x 147mm (Depth)
  • Power Dissipation: 50 watts
  • Heat Sink: Integrated
  • Weight: 3.5 kilograms
  • Operation Temperature: 0 to 50 degrees Celsius
  • Storage Temperature: -40 to 75 degrees Celsius
  • Installation and Operation: By trained personnel
