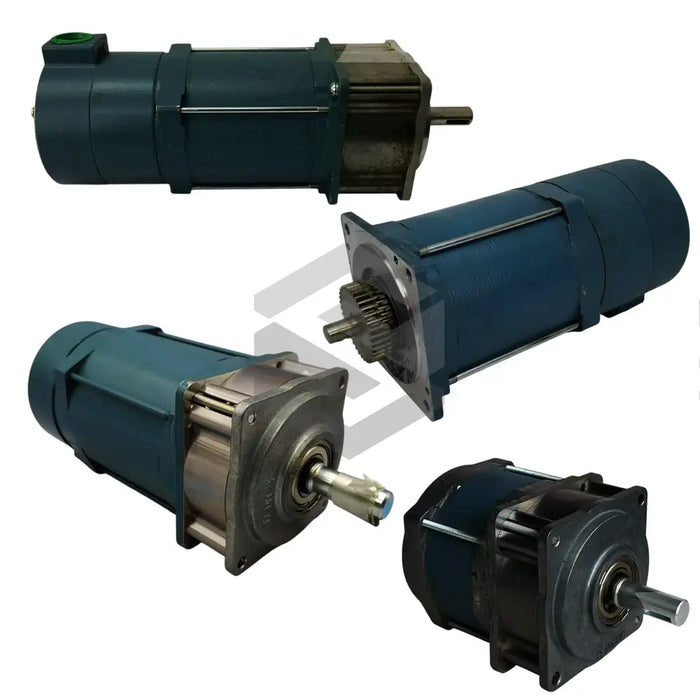

S image of SS241LG12

SS241LG12

by Danaher
$2,500.00 - $2,500.00
$2,500.00
$2,500.00 - $2,500.00
$2,500.00

In Stock, Ships 1 - 3 Days

The SS241LG12 from Danaher features a 12:1 gear ratio and delivers up to 450 oz-in of torque. Part of the Slo-Syn Synchronous Motors series, this synchronous motor operates at speeds of 5 RPM at 50 Hz and 6 RPM at 60 Hz and supports operating voltages of 120 V and 240 V.

With a minimum torque of 2218 oz-in and a NEMA 24 frame size, it ensures precise synchronization and minimal vibration under continuous-duty cycles. It also maintains performance across both single-phase and three-phase systems.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Frequency (hz)

50 and 60

Gear Ratio

12:1

Maximum Load Inertia For 1 Phase, 50 Hz (kg-cm²)

311

Maximum Load Inertia For 1 Phase, 50 Hz (lb-in²)

106

Maximum Load Inertia For 1 Phase, 60 Hz (kg-cm²)

798

Maximum Load Inertia For 1 Phase, 60 Hz (lb-in²)

273

Maximum Load Inertia For 3 Phase (kg-cm²)

798

Maximum Load Inertia For 3 Phase (lb-in²)

273

Minimum Torque (n-cm)

1566

Minimum Torque (oz-in)

2218

Motor Torque (oz-in)

Up to 450

Operating Voltage

120 V and 240 V

Rpm At 60 Hz

72 RPM

Speed (rpm) At 50 Hz

5

Speed (rpm) At 60 Hz

6
