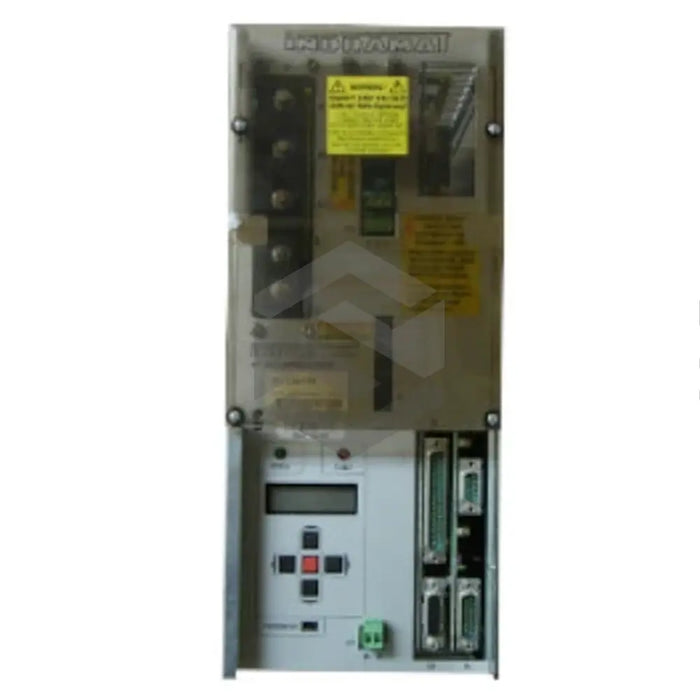

S image of TDA 1.1-100-3-AP0

TDA 1.1-100-3-AP0

by Bosch Rexroth Indramat
$1,864.25 - $4,499.39
$1,864.25
$1,864.25 - $4,499.39
$1,864.25
The Bosch Rexroth Indramat TDA 1.1-100-3-AP0 is a main spindle controller designed for secure installation using a long shaft Allen screwdriver. It incorporates a programming module, affixed via a knurled screw, and encompasses the motor’s earth connection. Designed to function optimally within installations up to 1,000m above sea level, this device can operate in a range of climate conditions including hot, temperate, cold, and dry. It features an additional encoder input for secondary motor feedback or spindle feedback and terminates all feedback, NC, and power connections at a single terminal or plug-in connector. Compliant with DIN 40 050 specifications, it offers an IP 10 degree of protection and operates with a +/-10V analog command value. The unit weighs 10.5kg and features a continuous effective current of 70A. Transportation should be carried out load-free and with care for the device’s integrity.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

TDA 1.1-100-3-AP0

Installation Method

Inside Control Cabinet with Allen Screwdriver (over 400mm shaft length)

Continuous Effective Current

70A

Product Weight

10.5kg

Fail Response

Braking Action, Power Off

Device Features

Additional Encoder Input for Second Motor or Spindle Feedback

Installation Elevation

Upto 1,000m Above Sea Level

Climate Zone Support

Hot and Temperate, Cold and Dry

Degree of Protection

IP 10 (in compliance with DIN 40 050 specifications)

Command Value

+/-10V Analog

Additional Interface

None

Initial Setup

Proper Connection and Commissioning

Function Modification Method

Through Application Parameters in Programming Module

Transportation Requirement

Without Load, Not Tipped or Dropped
