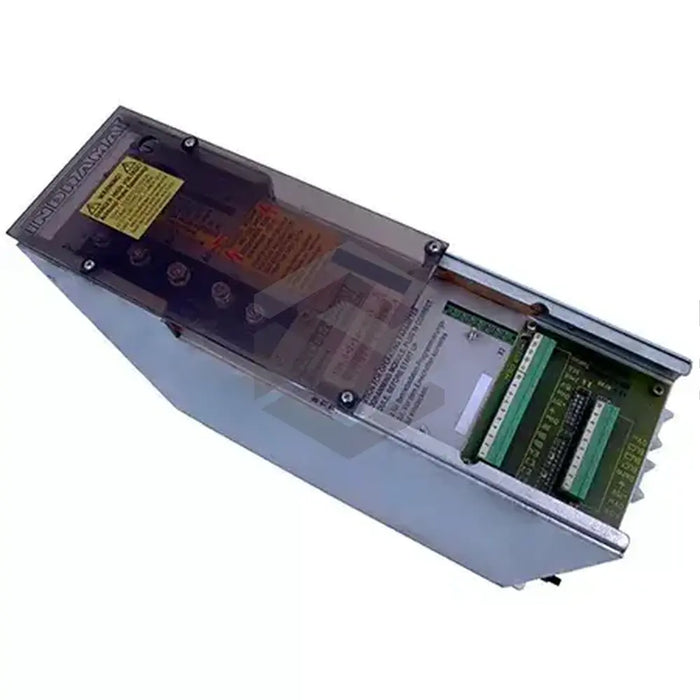

TDM 1.2-050-300-W1-115

Request a quote
The TDM 1.2-050-300-W1-115, manufactured by Bosch Rexroth Indramat, is a versatile servo drive module ideally suited for MAC 71 to MAC 160 motors. Providing consistent performance in low to medium power ranges, this servo drive module is widely utilized in packaging, automotive, and CNC applications. Distinguished by its inclusion in the ANAX series, this product offers a personality module to simplify tuning. The TDM 1.2-050-300-W1-115 is equipped with status indicator lamps for straightforward troubleshooting and features such as adjustable drift offset, high short-time acceleration moments, and directional rotation reversal. It has a 50A current and peak current, and a continuous current of 45A. The unit also includes a built-in fan with a connection voltage rated at AC 115V. The unit operates at optimal conditions between 5 and 45 degrees Celsius and at altitudes up to 1000m above sea level. It requires installation in an IP 54 rated control cabinet, befitting its IP 20 protection category.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Module
  • Use: Standard Servo Drive for MAC 71 to MAC 160 motors
  • Features: Status Lamps, Adjustable Drift Offset Via Potentiometer, High Short-Time Acceleration Moments, Reversal of Direction of Rotation
  • Series: 1
  • Models: 2
  • Current Type: 50A
  • Link Circuit Rated Voltage: DC 300V
  • Built-In Fan: Yes
  • Rated Connection Voltage for Fan: AC 115V, 50 … 60Hz
  • Peak Current: 50A
  • Continuous Current: 45A
  • Power: 15kW
  • Power Loss with I (cont): 250W
  • Weight: 10kg
  • Supply Voltage for Fan: 220/115V
  • Operating Frequency for Fan: 50 to 60 Hz
  • Power Consumption of Fan: 30VA
  • Permissible Ambient Temperature: 5 to 45 degrees
  • Storage and Transportation Temperature: -30 to 85 degrees
  • Mounting Altitude: 1000 meters above sea level
  • Protection Category: IP 20
  • Mounting Requirements: IP 54 Control Cabinet.
