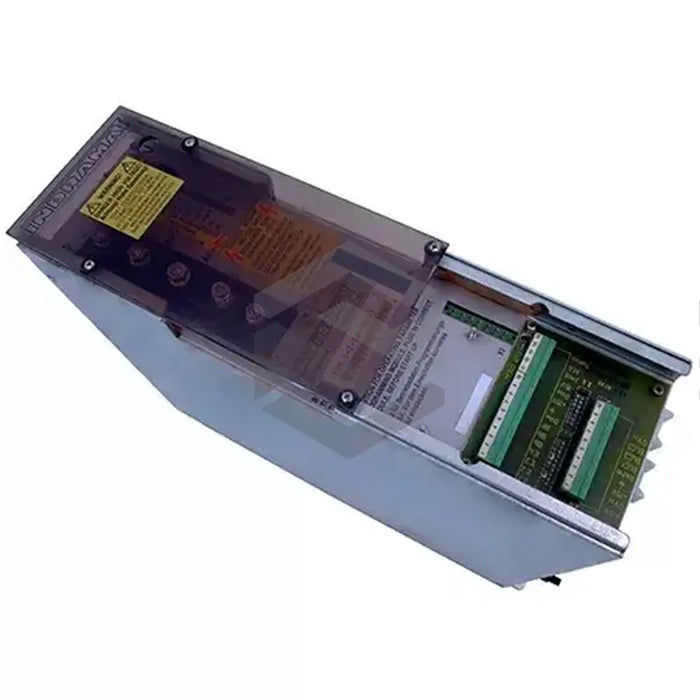

TDM 1.2-100-300-W1-220/S100

Request a quote
The TDM 1.2-100-300-W1-220/S100 is a servo drive module designed and manufactured by Bosch Rexroth Indramat. Using a MOD plug-in programming module, it can be paired with the appropriate motor from the same manufacturer. The module features an accessible circular reset button and can operate effectively in temperatures ranging from 5°C to 45°C within the control cabinet. To avoid overheating, no heat-producing components should be installed directly beneath it. Multiple modules can be connected vertically, with a required clearance of at least 80mm above and below within the control cabinet. It is securely affixed to the control cabinet using an M6-DIN 912 cheese-head screw. The module boasts an IP 10 protection rating and an inbuilt cooling fan with a 220VAC voltage rating. With a flashing TS LED to indicate excessive temperature, it effectively meets low and medium power range requirements. It weighs 10.5kg and carries an alternative MPN of R911236511.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Module
  • Product Code: TDM 1.2-100-300-W1-220/S100
  • Programming Module Connection: MOD Plug-in
  • Placement Location: Inside Control Cabinet
  • Temperature Range: 5°C to 45°C
  • Parallel Connection: Possible
  • Required clearance: Minimum 80mm above and below
  • Mounting Screw: M6-DIN 912 Cheese-head
  • Weight: 10.5kg
  • Protection Rating: IP 10 as per DIN 40 050
  • Cooling Fan Voltage: 220VAC
  • Cooling Fan Power Consumption: 30VAC
  • Intended Power Range: Low and Medium
  • Warning LED: Red TS LED
  • Alternative MPN: R911236511.
