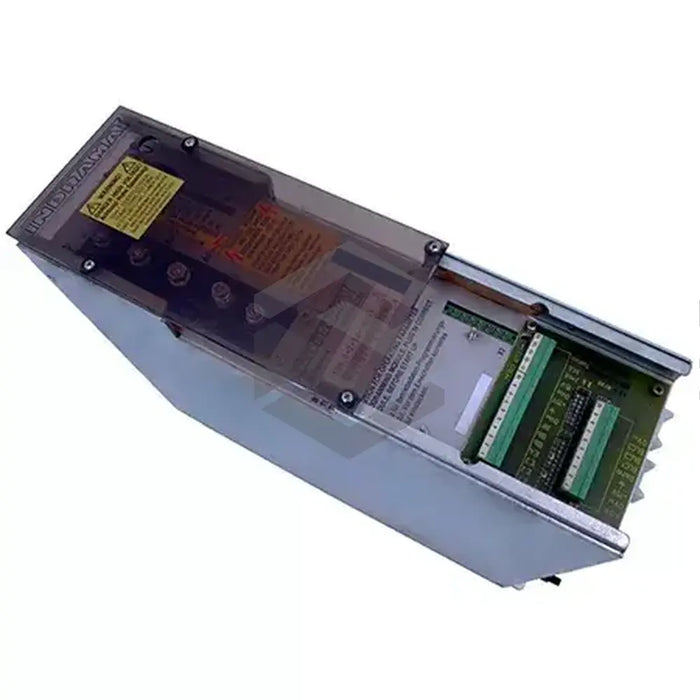

TDM 2.1-030-300-W1-220/S101

Request a quote
The Bosch Rexroth Indramat TDM 2.1-030-300-W1-220/S101 is a servo drive module designed to enhance precision in the operation of NC machines using a MAC 63 to MAC 93 motor. Primarily utilized in woodworking machines, metal machining, automation systems, and transfer lines, this unit manages motor speed via adjustment of frequency and torque. The module converts the system into a three-phase controlled setup which maintains frequency, amplitude, torque, rotor position, and calibrated speed for specific applications. The TDM 2.1 module also operates as a torque controller drive in the control unit and boasts a bus connection with the rating plate, plug-in terminals, and a MOD programming module. With a current rating of +24V, a tolerance rate of +/-15%, and an input rating of 300 amps, the module adheres to DIN VDE 0160 standards for flush mounting in a ventilated control cabinet. Installation guidelines recommend a maximum altitude of 1000 meters above sea level and an ambient temperature of +5°C to +45°C, with derating data of +55°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Module
  • Model: TDM 2.1-030-300-W1-220/S101
  • Applications: Woodworking machines, Metal machining, Automation system, Transfer lines
  • Function: Conversion into a three-phase controlled system, Torque controlling
  • Features: Bus connection with rating plate, Plug-in terminals, MOD programming module
  • Input Rating: 300Amps
  • Current Rating: +24V
  • Tolerance Rate: +/-15%
  • Mounting Location: Control cabinet (with ventilation)
  • Ambient Temperature: +5°C to +45°C (with derating data of +55°C)
  • Mounting Elevation: Maximum of 1000 meters above sea level
