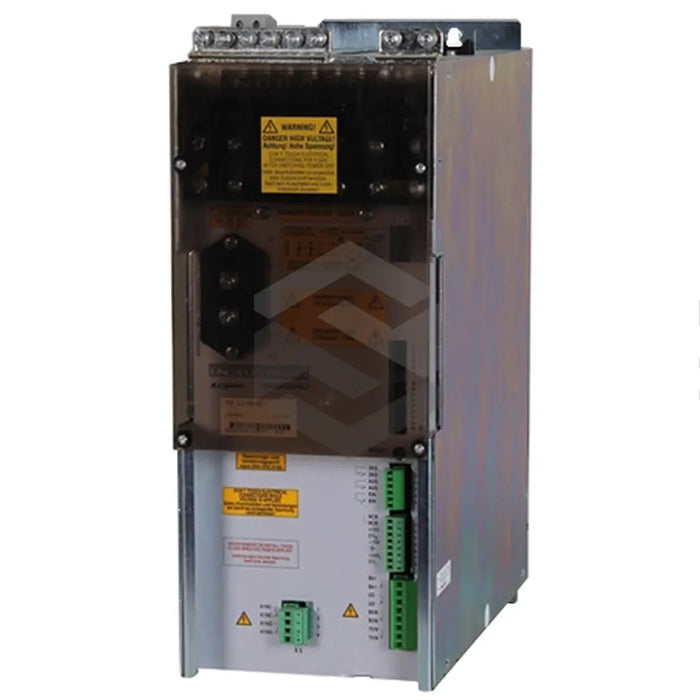

TVD 1.2-15

Request a quote
The TVD 1.2-15 Power Supply Module by Bosch Rexroth Indramat is designed for an environment with temperatures ranging from +5 to +45 degrees Celsius and capable of operating at elevations up to 1000 meters above sea level. It features a direct connection to a delta system and has built-in overvoltage protection through an isolated transformer or overvoltage detector. The power supply module also exhibits limited current loading with an IP10 protection class against penetration by solid objects. Despite this, it lacks adequate protection against water and intentional penetration by hand. Essential internal components like the storage capacitor, DC bus smoothing choke, and commutation choke are pre-incorporated for easy installation. Care should be taken when connecting the module to the power supply and during arranging drive controllers, ensuring those with the highest power rating are nearest the power supply.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: TVD 1.2-15
  • Connection Type: Delta system without isolation
  • Protection: Overvoltage protection via isolated transformer or overvoltage detector
  • Fuse Category: GL
  • Fuse Limit: 35A
  • Consumption Rate: Regulated
  • Ambient Temperature: +5 to +45 degrees
  • Maximum Temperature: +55 degrees Celsius
  • Installation Elevation: 1000meters above sea level
  • Inbuilt Components: Storage capacitor, DC bus smoothing choke, commutation choke
  • Protection Class: IP 10
  • Protection Against Objects: Solid objects with 50mm diameter
  • Protection Against Water: None
  • Drive Arrangement: Install spindle drive with highest power rating closest to power supply
