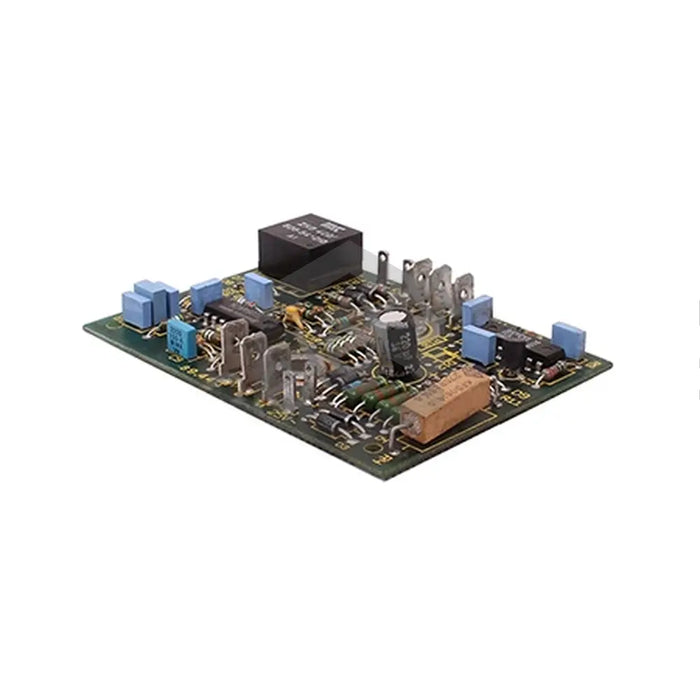

TVM 2.2-050-W1-115

Request a quote
The Bosch Rexroth Indramat TVM 2.2-050-W1-115 is a TVM series power supply module. Its primary role is to convert incoming three-phase input into rectified DC output, which is then used to power Indramat motors and provide high voltage for drives. The module takes an input of three-phase 220/230 Volts AC with a frequency between 50 to 60 Hertz and can power up to six drives. Notably, the module absorbs power regenerated when the drives are in generator mode. The TVM 2.2-050-W1-115 unit supplies 50 Amps of power and carries a rated voltage of 300 Volts DC on the DC bus. It uses single phase 115 Volts AC for control electronics and is cooled by an integrated blower. The module's housing has a protection rating of IP 10 and it is recommended that the unit is installed inside a secured, industrial cabinet, safe from dust and moisture. The insulation class of the unit is C per DIN VDE 0110 standard.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: TVM Series
  • Product Model: TVM 2.2-050-W1-115
  • Module Function: Rectify incoming three-phase input and supply DC output
  • Input Rating: Three-phase 220 / 230 Volts AC
  • Line Frequency Range: 50 to 60 Hertz
  • Power Output Capacity: Up to six drives
  • Control Voltages Source: Wire ribbon cable
  • Rated Output: 50 Amps
  • DC Bus Voltage: 300 Volts DC
  • Control Electronics Requirements: Single phase 115 Volts AC
  • Cooling System: Integrated blower
  • Housing Protection Rating: IP 10 as per DIN 40 040
  • Installation Location: Inside an industrial cabinet
  • Humidity Class: F as per DIN 40 040
  • Insulation Class: C as per DIN VDE 0110
