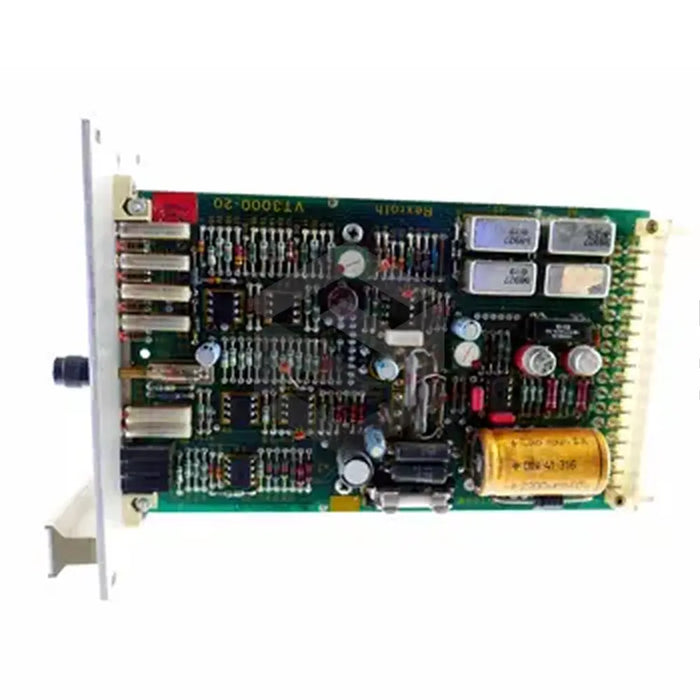

VT 3000 S 35-R5
The VT 3000 S 35-R5 is a valve amplifier produced by Bosch Rexroth Indramat. This device operates with a voltage of 24 VDC, +/-10%, and features a Euro-card style with 32 pin plugin design. It belongs to the VT 3000 series and offers four commands that can be activated by their corresponding relays, all powered by a smoothed 24VDC voltage. Users can adjust the ramp time via the internal potentiometers, and utilize either an external command value potentiometer or controlled voltages for the command value voltage. The amplifier has an operating range between 22V and 39V, consumes less than 1A of current and has a maximum power consumption of 50VA. Its operating temperature spans between 0 and 50 degrees, and it tolerates storage temperatures between -25 and 85 degrees. The device must only be plugged or unplugged when switched off.
