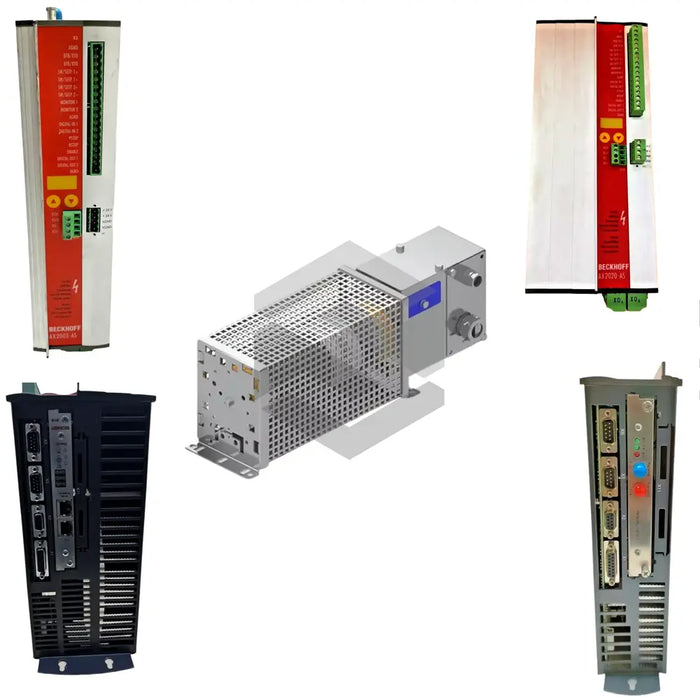

series image of AX5101-0000-0202

AX5101-0000-0202

by Beckhoff
$4,328.01 - $4,328.01
$4,328.01
$4,328.01 - $4,328.01
$4,328.01
Available, Shipping Varies
The AX5101-0000-0202, manufactured by Beckhoff, is a part of the AX51xx Servo Drive series. This single channel drive has a current rating of up to 40 A and is designed to support extremely fast, dynamic positioning tasks. The unit boasts a quick and straightforward connection process to AX5000 devices, suitable for a variety of motor types and sizes, and works optimally with EtherCAT. This particular model requires a supply voltage rating of 3 x 100…480 V AC ±10 %/1 x 100…240 V AC ±10 % and has an output current rating of 1.5 A. The peak output RMS current is 4.5 A and it is integrated with multi-feedback interfaces, diagnostic parameters display, and a Cat. C3 EN 61800-3 specified filter. Key specifications include a maximum DC-Link voltage of 875 V DC, and DC-Link capacitance of 235 µF with protections under IP 20, and recognitions from CE, cULus, and EAC. The driver maintains operational ambiences from 0 to +50oC and has dimensions: 274mm height, 92mm width, and 232mm depth.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Product Family: AX51xx Servo Drives
  • Connection Type: EtherCAT
  • Supply Voltage Rating: 3 x 100…480 V AC ±10 %/1 x 100…240 V AC ±10 %
  • Output Current Rating: 1.5 A
  • Minimum output value: 0.35 A
  • System Bus: EtherCAT
  • Peak Output RMS Current: 4.5 A
  • Feedback Interface: Multi-feedback
  • Main Filter: Integrated Cat. C3 filter
  • SERCOS Drive Profile: IEC 61800-7-204 (SoE)
  • DC-Link voltage: Up to 875 V DC
  • DC-Link Capacitance: 235 µF
  • Power Loss: Up to 35 W in S1 operation
  • Protection Class: IP 20
  • Approvals and Markings: CE, cULus, EAC
  • Operational Ambient Temperature: 0 to +50oC
  • Product Dimensions: 274 mm height, 92 mm width, 232 mm depth
