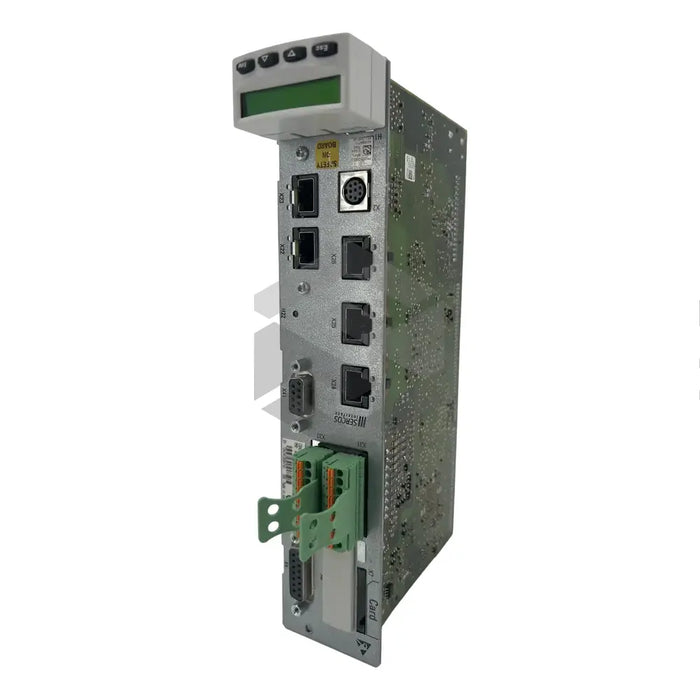

product Main (Front Left) image of CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW

CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,599.99 - $2,599.99
$2,599.99
$2,599.99 - $2,599.99
$2,599.99
In Stock, Ships Today
The CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW is a high-performance INDRA Drive control unit, manufactured by the reputable Bosch Rexroth Indramat. This control unit forms a critical component of drive controllers, primarily functioning to control and monitor electric motors within systems like machine tools and assembly equipment. Notably, it belongs to the CSH Design-3 line, offering excellent system connectivity with spring and screw terminal blocks for secure connection points. This product fits best in industrial settings, owing to its ability to resist vibrations and its C3 category under IEC 61800‑3. However, when used in residential environments, additional interference suppression measures are needed. The control unit is compatible with various encoders, its interface can accommodate a 12V supply voltage, and it comes with a standard control panel. Firmware compatibility is available, but must be separately procured. For safety, features like safely-limited speed, door locking, and monitored positioning are built in.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: CSH01.3C-ET-ENS-NNN-CCD-S2-S-NN-FW
  • Use: Control Electric Motors and Monitor Operations
  • Industry: Machine tools and Handling and Mounting Equipment
  • Design: 3 line of CSH control sections
  • Connection Type: Spring Terminals and Screw terminal blocks
  • Category: C3 according to IEC 61800‑3
  • Interference Suppression Measures: Required for public low-voltage mains supplying residential areas
  • Switching Frequencies: 2 kHz, 4 kHz, 8 kHz, 12 kHz, and 16 kHz
  • Firmware: Supported but ordered separately
  • Safety Features: Safe Motion, safe door locking, safely-limited speed, safely-monitored position, safe homing procedure
  • Accepted Encoders: Sin-cos encoder (1 Vpp) with EnDat 2.1, Sin-cos encoder (1 Vpp) with Hiperface, 5V-TTL square-wave encoder with reference track, MSK encoder
  • Voltage: 12V
  • Control Panel: Standard control panel for setting drive address, accessing error memory, establishing position data reference.
