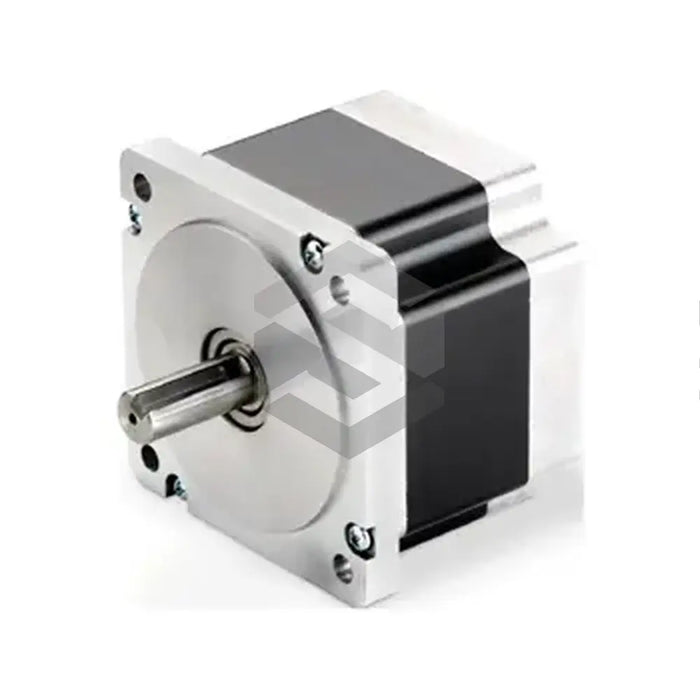

P image of CTP32NLF46KAA00

CTP32NLF46KAA00

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Kollmorgen CTP32NLF46KAA00 stepper motor offers both superior power and exceptional reliability, as it operates with optimal efficiency and delivers maximum torque. The unit is a part of the 2-phased size 34 motor range and can be connected in both unipolar or bipolar manner. With a bipolar connection, the motor yields a torque of 9.5 Nm and with a unipolar connection, the nominal torque is 7.6 Nm. The thermal resistance of the motor is 1.55°C/Watt, and its detent torque is 0.29 Nm. It features a captured front bearing, suitable for lead screws, and generates 200 steps per revolution, with a step accuracy of +/- 3%. The motor's insulation voltage rating is 340 V DC and operates ideally between -20 to +40°C. The high voltage insulation system ensures safety, and it weighs 3.0 kg, ensuring a manageable installation in suitable machine applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

Step Motor

Model

CTP32NLF46KAA00

Connection Type

Unipolar/Bipolar

Torque (Bipolar Connection)

9.5 Nm

Torque (Unipolar Connection)

7.6 Nm

Thermal Resistance

1.55°C/Watt

Detent Torque

0.29 Nm

Rotor Moment of Inertia

2.61 kg-cm2

Net Weight

3.0 kgs

Motor Category

2 Phase Size 34

Motor Features

High Voltage Insulation System, Captured Front Bearing

Steps per Revolution

200

Step Accuracy

+/- 3%

Insulation Voltage Rating

340 V DC

Step Angle

1.80

Insulation Resistance

100 Megohms

Operating Temperature

-20 to +40°C
