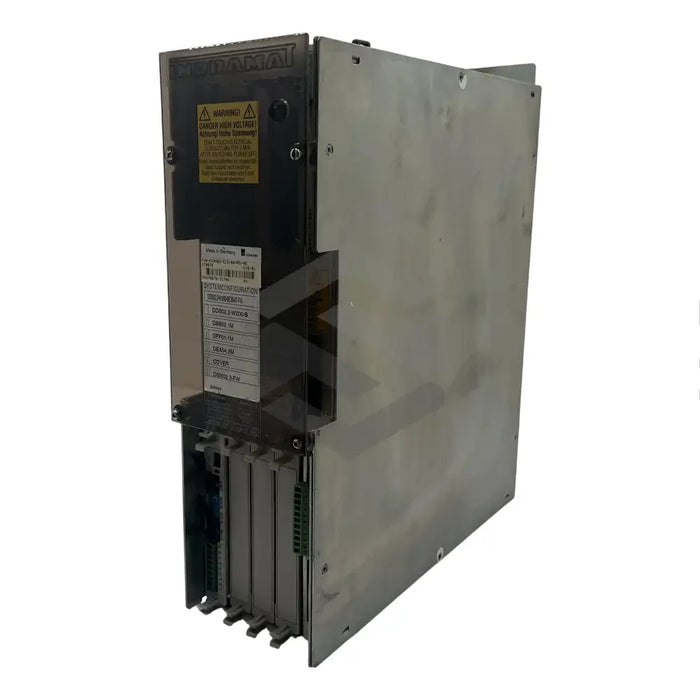

C image of DDS02.1-W025-RS01-03-FW | Main (Front Left)

DDS02.1-W025-RS01-03-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the DDS02.1-W025-RS01-03-FW is a drive controller with a rated output of 25 Amps. It is equipped with a resolver for measuring rotation degrees and a SERCOS communication module. The firmware, which supports these functions, must be ordered separately and includes the programmed operating parameters. The controller's design is modular, featuring five slots for the software module, communication module, and three plug-ins. This enables easy transferring of a software module to other drives or replacement drives. Functioning under an optimal ambient temperature of 0 to 45 degrees Celsius, it can deliver reduced output between 45 to 55 degrees Celsius. However, operation past 55 degrees Celsius or at elevations beyond 5000 meters is prohibited by Bosch. Ideally, unused units should be stored at -30 to 85 degrees Celsius, free from corrosive elements.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product type

Drive controller

Model

DDS02.1-W025-RS01-03-FW

Rated output

25 Amps

Feedback type

Resolver-based motor feedback

Communication

SERCOS communication module

Slot capacity

Five slots (Software module, communication module, three plug-in modules)

Storage for operation parameters

Software module

Optimal operation temperature

0 to 45 degrees Celsius

Derated operation temperature

45 to 55 degrees Celsius

Prohibited operation temperature

Above 55 degrees Celsius

Storage temperature

-30 to 85 degrees Celsius

Installation elevation (Rated data)

1000 meters

Installation elevation (Derated data)

5000 meters

Application

To facilitate commission of other drives and replacement of failed drives.
