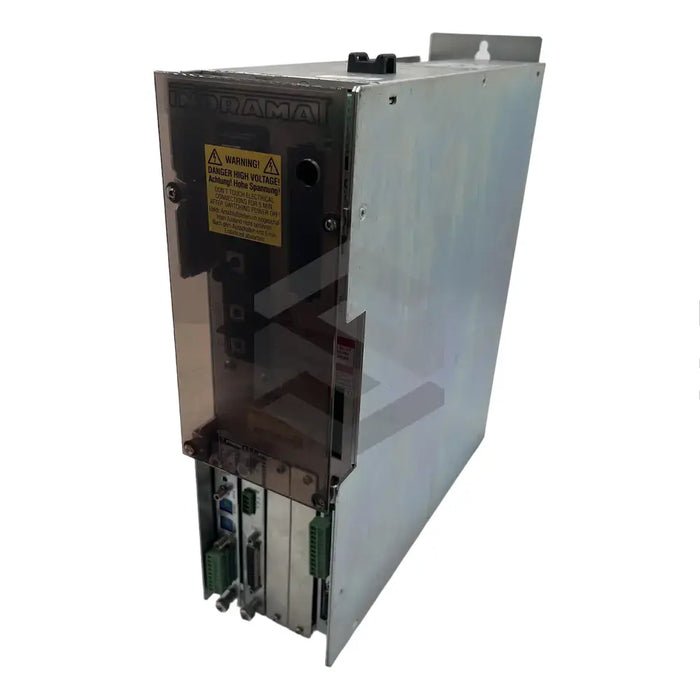

C image of DDS02.2-W100-BE45-01-FW | Main (Front Left)

DDS02.2-W100-BE45-01-FW

by Bosch Rexroth Indramat
$7,229.47 - $7,952.42
$7,229.47
$7,229.47 - $7,952.42
$7,229.47

In Stock, Ships 1 - 3 Days

The DDS02.2-W100-BE45-01-FW is a drive controller produced by Bosch Rexroth. Designed for cabinet installation in a vertical orientation, this device lacks waterproof protection but boasts an IP 10 protection level following DIN 40 050 standards. This 355mm long unit allows for numerous controller connections to a single power source and requires careful installation to prevent interference. Connection to an appropriate motor is accomplished through a specialty power cable, and it utilizes an X1 connector for its control electronics. With a motor feedback feature in its X4 connector, this device also carries a one-year backup support. Compatible with select AC motors, this unit requires proper transport, storage, and installation for optimal functioning and is cooled via airflow within the control cabinet. Its operation specifics are determined by firmware, and a permanent earth wire connection is mandated post-installation. This controller can be globally shipped to any international destination.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS02.2-W100-BE45-01-FW

Mounting Style

Inside a control cabinet

Protection Level

IP 10 as per DIN 40 050 standards

Line Code

2

Installation Orientation

Vertical

Overall Length

355mm

Connection Type

Power Cable from same manufacturer

Control Electronics Connector

X1

Motor Feedback Connector

X4

Backup Support Period

1 Year

Compatible Motors

MDD, 1MB, LAF series and more

Cooling Method

Airflow inside control cabinet

Operating Limits

Never operated with an unregulated TVM 1.2 supply unit

Additional Requirement

Permanent earth wire connection as per the connection diagram.
