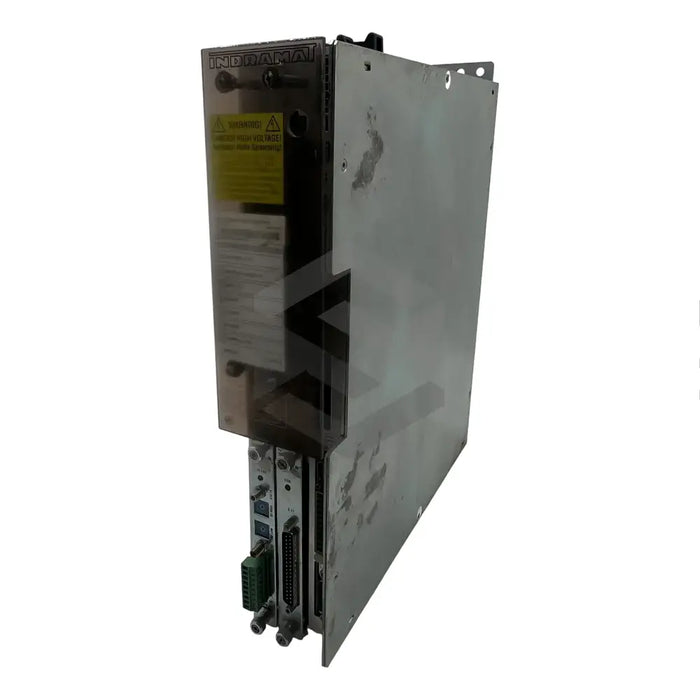

C image of DDS03.2-W030-BE23-01-FW | Main (Front Left)

DDS03.2-W030-BE23-01-FW

by Bosch Rexroth Indramat
$6,172.35 - $6,789.59
$6,172.35
$6,172.35 - $6,789.59
$6,172.35

In Stock, Ships 1 - 3 Days

The DDS03.2-W030-BE23-01-FW, a DDS drive controller, is a product of Bosch Rexroth Indramat. It has a maximum peak current of 30A, a continuous current of 12A and operates optimally in environmental conditions with temperatures ranging from 0 to 45 degrees Celsius. It has an IP 20 protection category and requires installation in a control cabinet that meets IP 10 demands. The recommended elevation for installation is 1000 meters above sea level at most. Specific cable specifications for motor connection include a maximum length of 75 meters with three lines for connection and a shielded pair for temperature monitoring. Humidity condensation should be avoided as it can cause damage. The device also features a cooling mechanism that dissipates heat and weighs about 5.5 kg. Its interoperability is ensured by the SERCOS interface, while its software module houses the firmware and drive parameters. The firmware is continuously upgradable and can be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS drive controller

Model

DDS03.2-W030-BE23-01-FW

Maximum Peak Current

30A

Continuous Current

12A

Operating Temperature

0 to 45 degrees

Storage and Transport Temperature

-30 to 85 degrees

Relative Humidity

95% without condensation

Protection Category

1P 20

Installation Elevation

1000 meters above sea level

Maximum Cable Length

75 meters

Cable Composition

Three lines, protective conductor connection, shielded pair for temperature monitoring

Weight

5.5 kg

Interface

SERCOS

Software Module

Firmware and drive parameters.
